Frame MTN WCS P-29er V3 Steel TEAM EDITION MEDIUM - (97452007032)
Free Manitou R8 Fork —view cart & add while stock lasts!
FREEBIES! Buy Frame MTN WCS P-29er V3 Steel TEAM EDITION MEDIUM - (97452007032) Today & Choose From One Of These FREE Gifts!

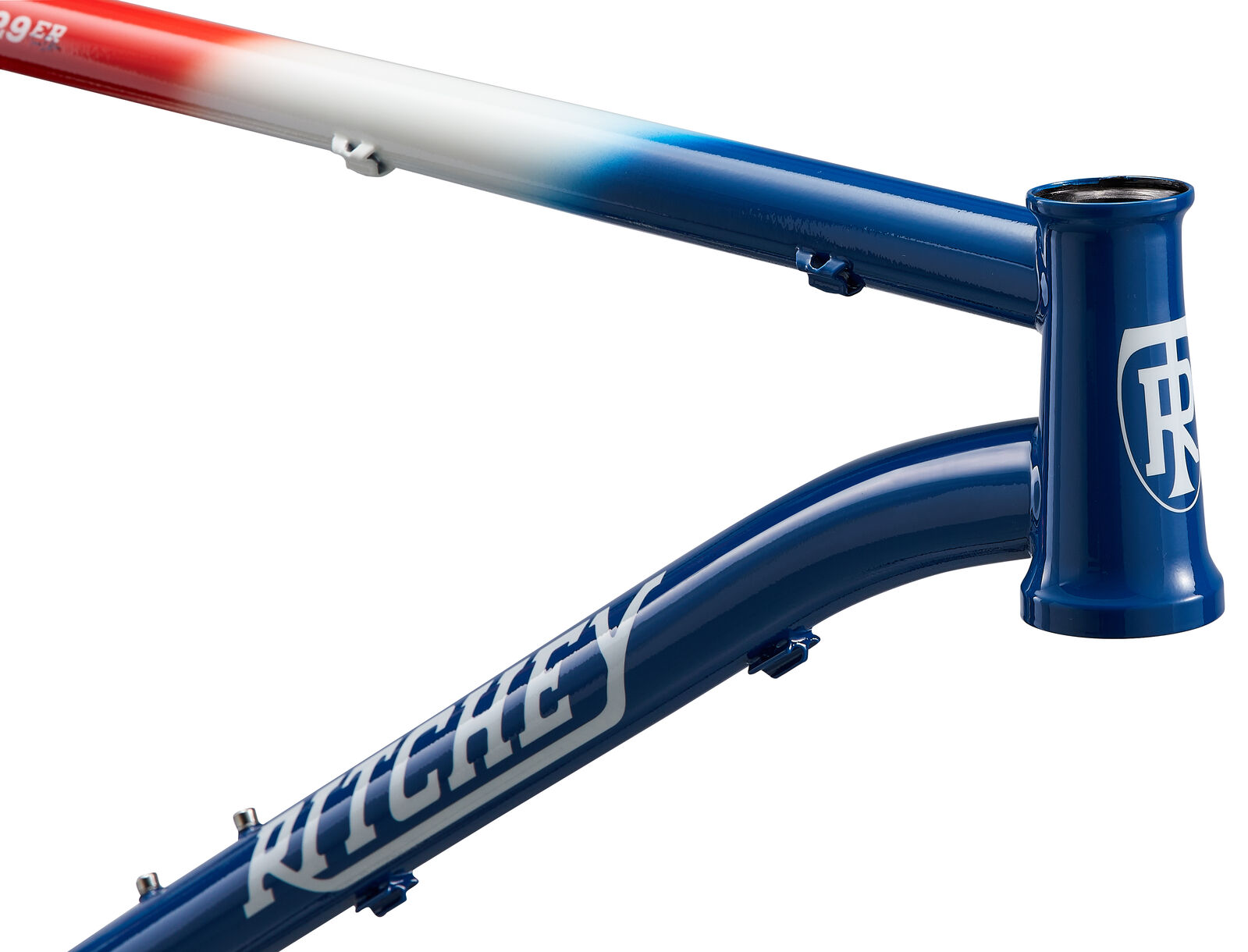

Frame MTN WCS P-29er V3 Steel TEAM EDITION MEDIUM - (97452007032)

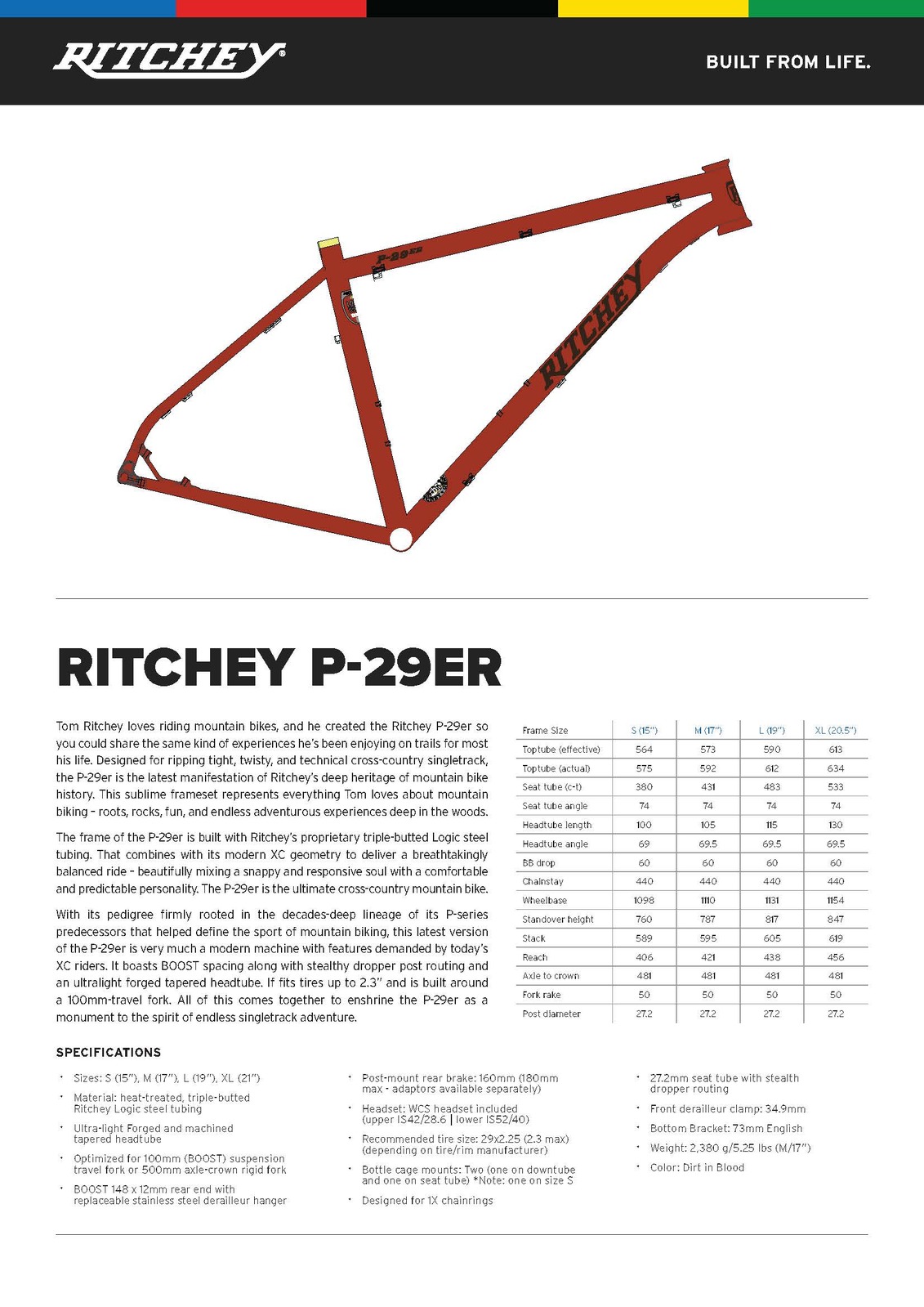

The P-29er is back.
Tom Ritchey loves riding mountain bikes, and he created the Ritchey P-29er so you could share the same kind of experiences he’s been enjoying on trails for most his life. Designed for ripping tight, twisty, and technical cross-country singletrack, the P-29er is the latest manifestation of Ritchey’s deep heritage of mountain bike history. This sublime frameset represents everything Tom loves about mountain biking – roots, rocks, fun, and endless adventurous experiences deep in the woods.
The frame of the P-29er is built with Ritchey’s proprietary triple-butted Logic steel tubing. That combines with its modern XC geometry to deliver a breathtakingly balanced ride – beautifully mixing a snappy and responsive soul with a comfortable and predictable personality. The P-29er is the ultimate cross-country mountain bike.
With its pedigree firmly rooted in the decades-deep lineage of its P-series predecessors that helped define the sport of mountain biking, this latest version of the P-29er is very much a modern machine with features demanded by today’s XC riders. It boasts BOOST spacing along with stealthy dropper post routing and an ultralight forged tapered headtube. It fits tires up to 2.3” and is built around a 100mm-travel fork. All of this comes together to enshrine the P-29er as a monument to the spirit of endless singletrack adventure.
FRAME
Material- heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded - Ultra-light forged and machined tapered head tube - Electrophoretic Deposition (ED Coat) treated for corrosion resistance
Headset - WCS headset included (upper IS42/28.6 | lower IS52/40)
Headset upper bearing41.8mm OD / IS42/28.6 (S.H.I.S.)
Headset lower bearing51.9mm OD / IS52/40 (S.H.I.S.)

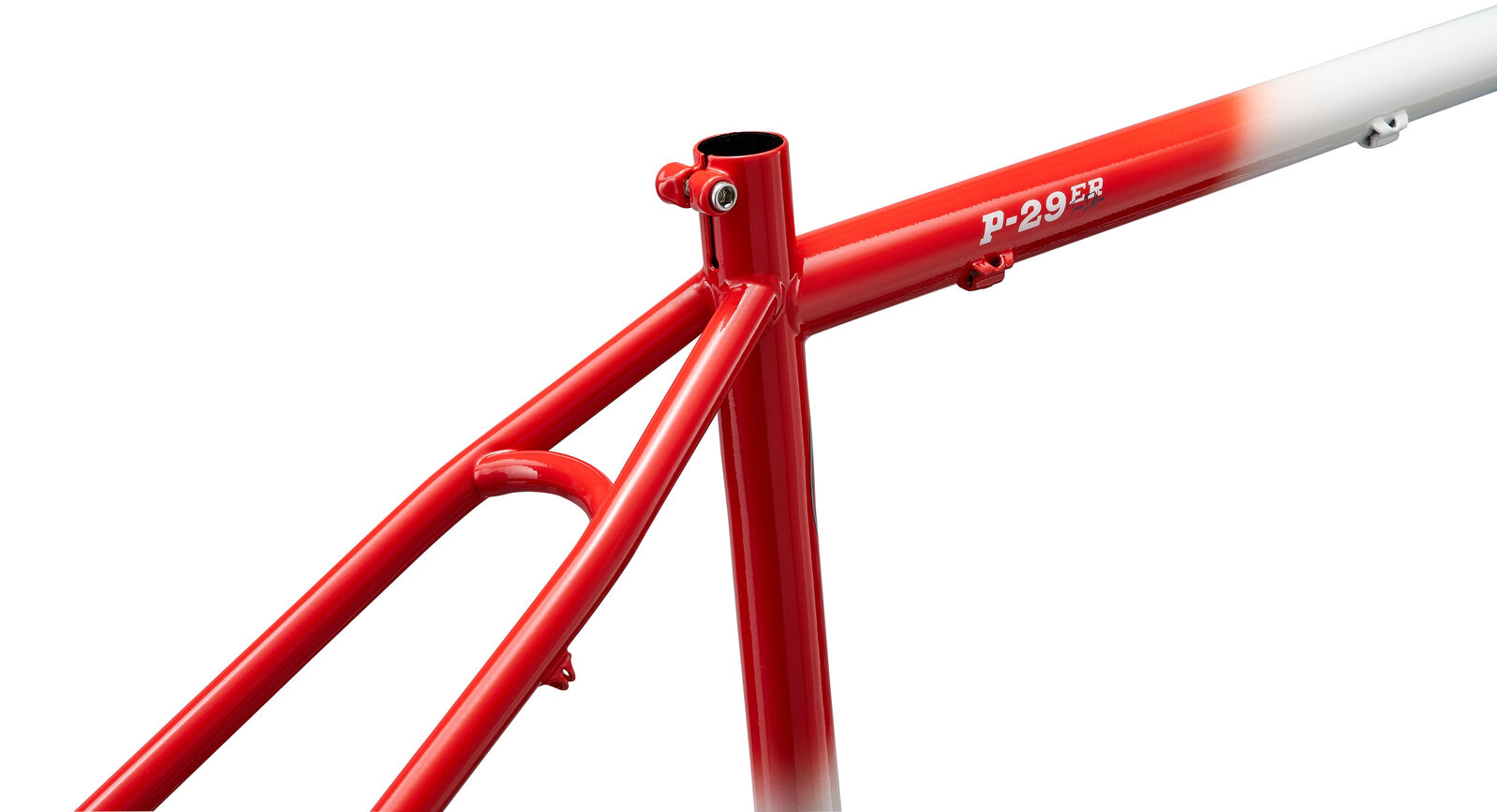

Seat tube clamp size - integrated (2.5Nm max for chain guides – 28.6mm clamp) 27.2mm seat tube with stealth dropper routing

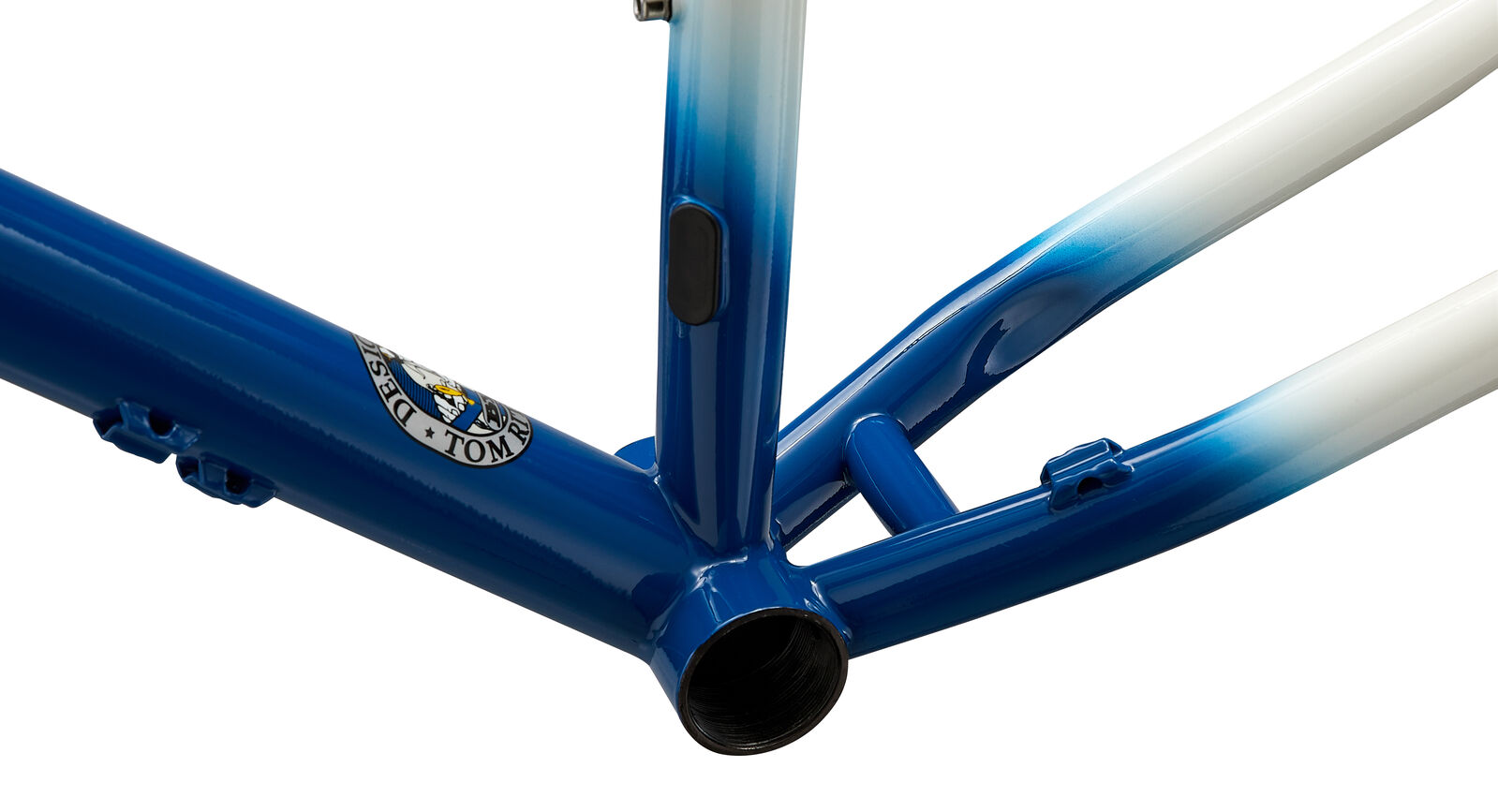

Bottom bracket - 73mm - English threaded
Crankset maximum ring size - 38T single
Designed for 1X chainrings
Chainline - 52mm
Not compatible with Direct Mount standard and related components (T-Type derailleurs and cassettes)
Bottle cage mounts - Two (one on downtube and one on seat tube) *Note: size small frames include only a downtube bottle cage mount

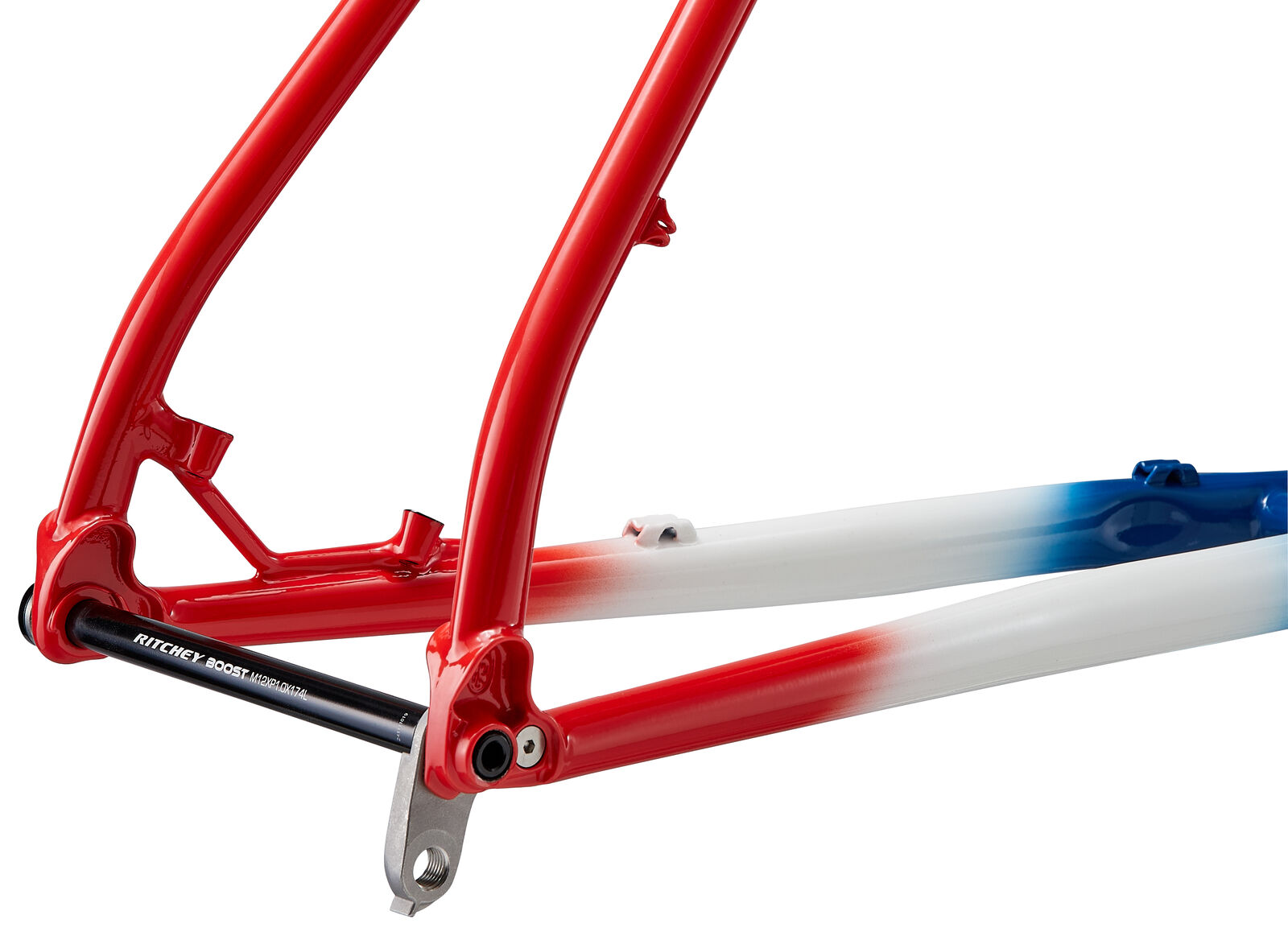

BOOST 148mm spacing (12mm alloy thru-axle included)
External cable routing

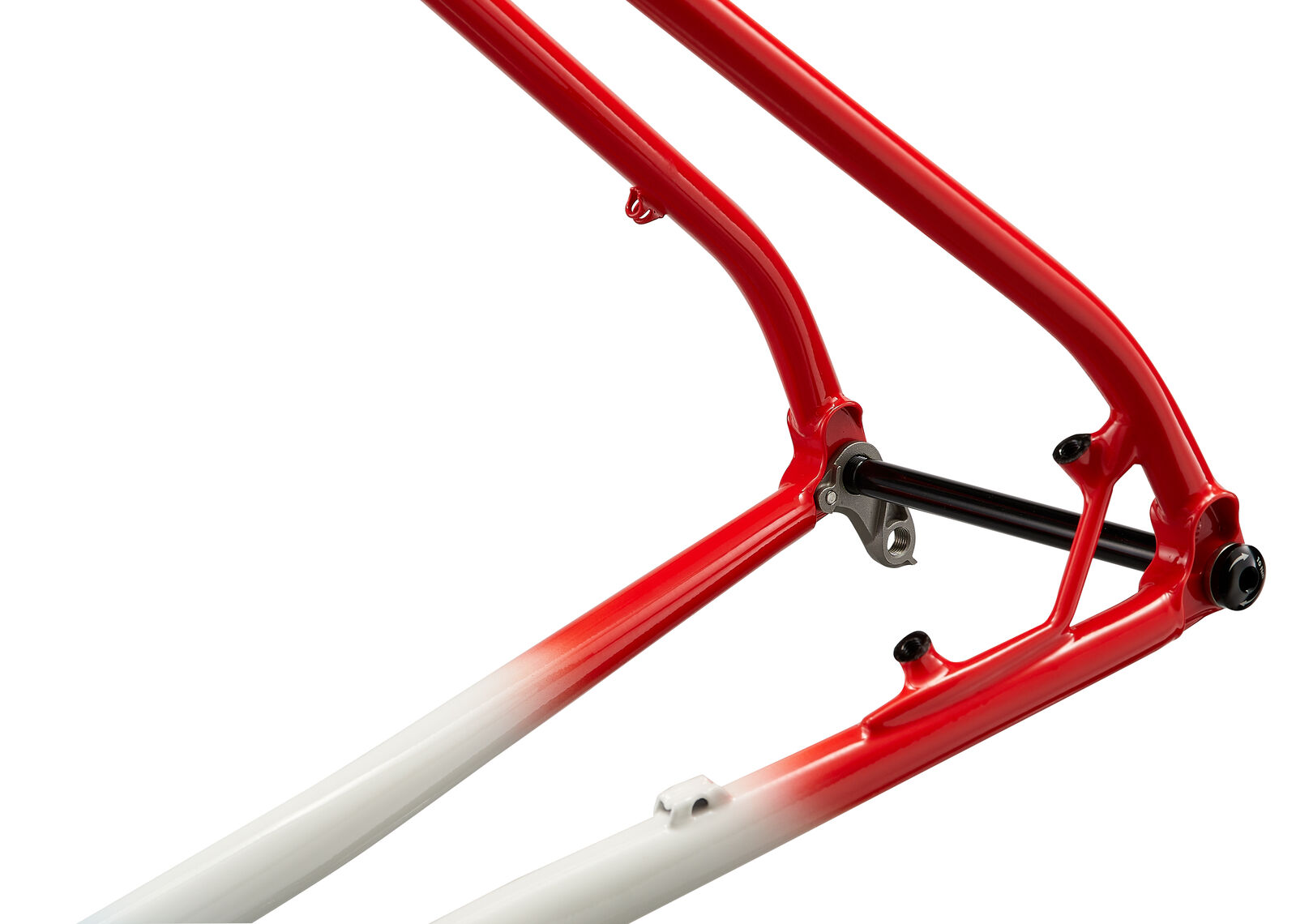

Replaceable stainless-steel derailleur hanger
FORK
Optimized for 100mm (BOOST) suspension travel fork or 483mm axle-crown rigid fork
TIRE COMPATIBILITY
Wheel and tire compatibility29x2.25 (2.3 max) - tire size varies by rim and tire manufacturer
BRAKE COMPATIBILITY
Post-mount rear brake160mm (180mm max - adaptors available separately)
DETAILS
Size - S (15") / M (17") / L (19") / XL (20.5")
Weight - 2,315g (M/17")
Colour - Limited Edition TEAM (red/white/blue)
(RIG-FRMBP29MDTM)
SKU | RIG-FRMBP29MDTM |
Barcode # | 796941975407 |
Brand | Ritchey |
Shipping Weight | 8.0000kg |
Shipping Width | 1.200m |
Shipping Height | 0.750m |
Shipping Length | 0.220m |
Shipping Cubic | 0.198000000m3 |
