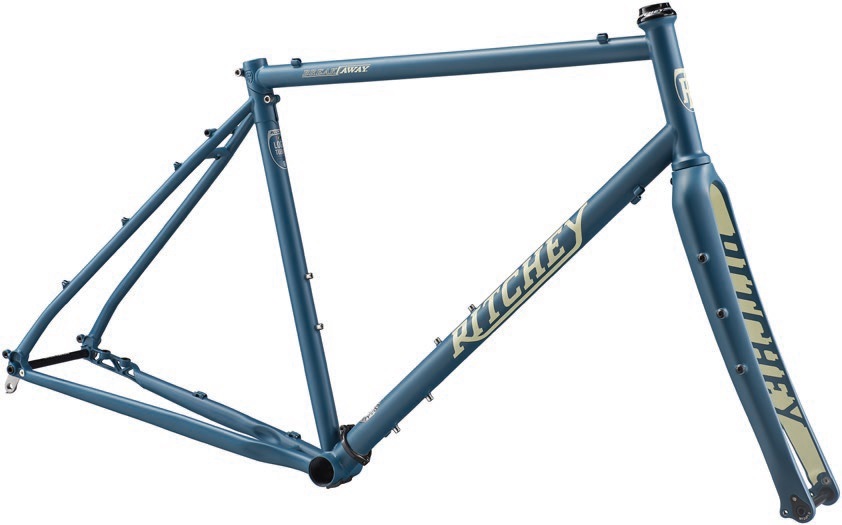

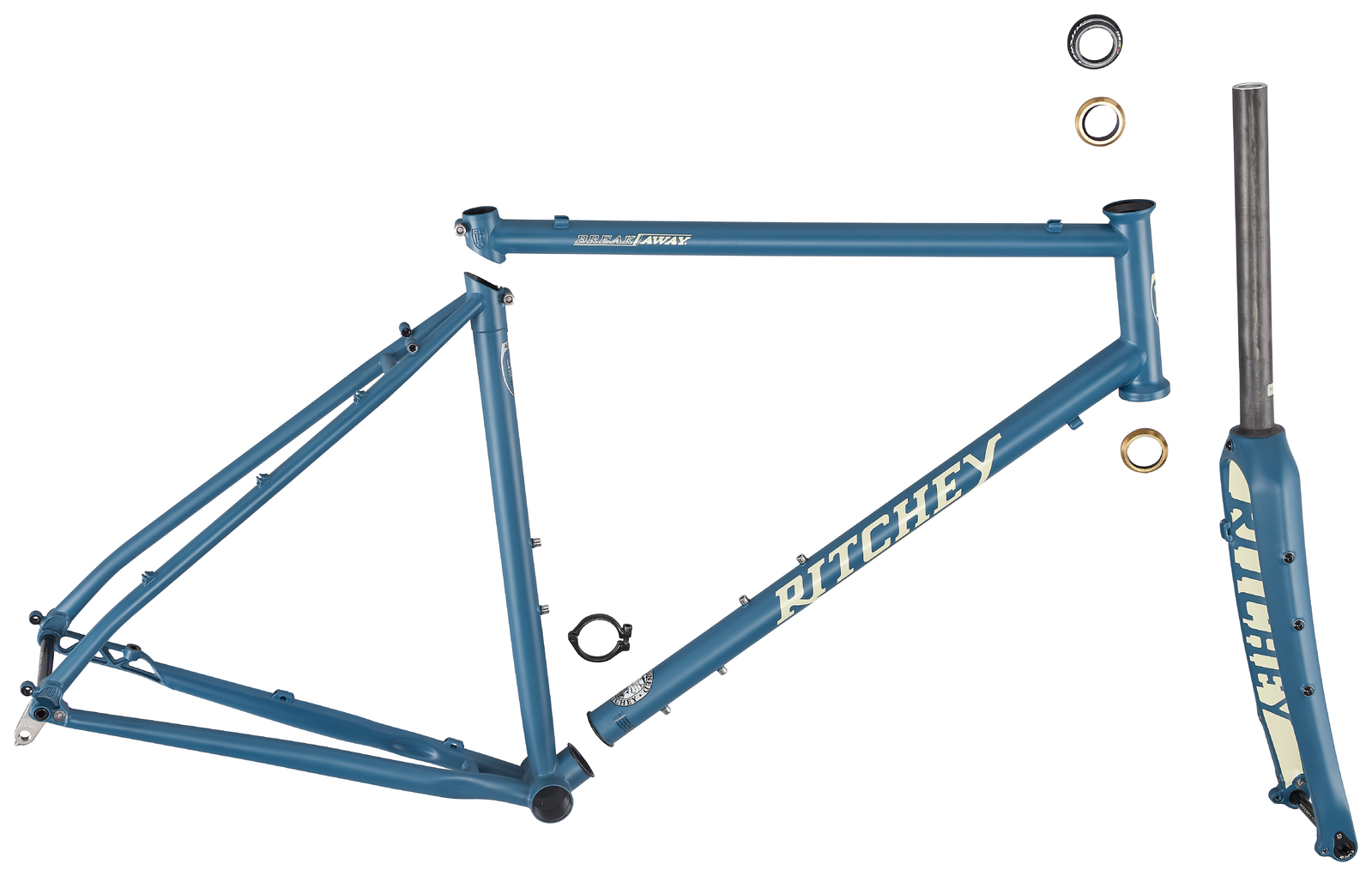

FRAMESET BREAKAWAY OUTBACK V2 LARGE Foam Blue - (97052847004)

FRAMESET BREAKAWAY OUTBACK V2 LARGE Foam Blue (97052847004)

Tom Ritchey rides about 10,000 miles per year, and he loves those long boundless rides where the surface changes from gravel to tarmac and everything in between. Combine that with his more than 40 years of designing and building bicycles, and it’s no wonder the Outback has become an icon in the gritty world of gravel and adventure bikes.

Tom also loves to travel. Inspired by an inherent passion for experiencing different cultures and a ceaseless desire to explore the world by bike, Tom designed the new Outback Steel Break-Away® for those of us that appreciate the versatility of the Outback and possess the wanderlust to travel with it to far-off destinations – this bike is for everyone who has demanded a steel Outback Break-Away over the past few years.

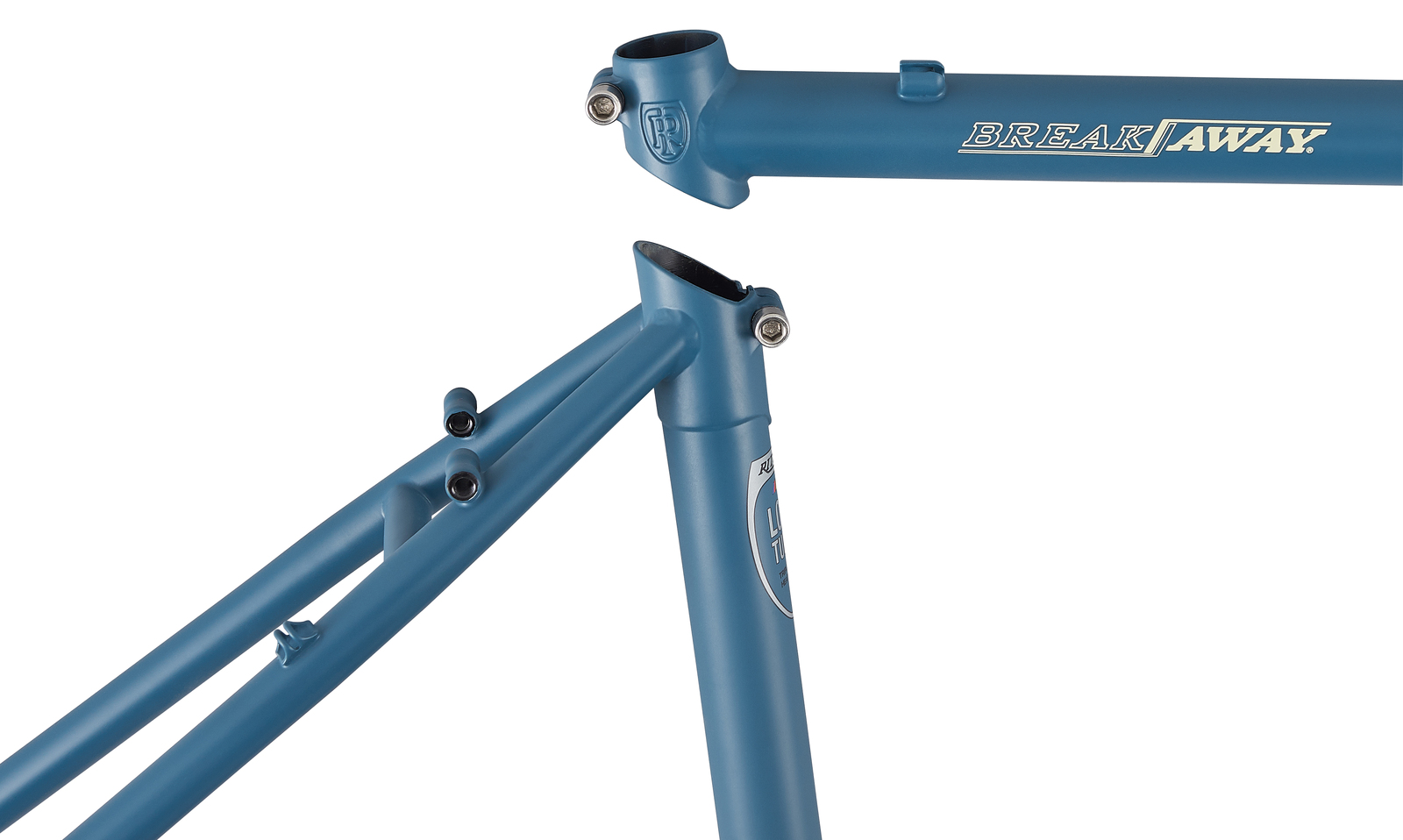

The Outback Steel Break-Away easily and quickly disassembles to fit into its own included sturdy travel case, which helps you avoid airline extra baggage fees. Once you arrive at your destination, the bike assembles with ease - allowing you to quickly get out and go.

In addition to its liberating and innovative Break-Away design, the Outback Steel Break-Away sports several practical and adaptable features that offer riders the ability to chase epic ride experiences beyond the end of the road and the end of the day. Rack and fender mounts help to keep things dry and expand the load-carrying capacity for longer bikepacking adventures, while clearance for 700c x 48mm or 650b x 2.0in tires opens up a whole new world of possibilities. The frame accepts flat-mount disc calipers, and the new all-carbon fiber Ritchey Adventure Fork with multi-purpose mounts on the legs gives you more places to stow the supplies you gather at the last café – wherever that may be.



Tech Specs

Frame

Materialheat-treated, triple-butted Ritchey Logic steel tubing - TIG welded

Ultra-light forged and machined straight 1-1/8" headtube

Electrophoretic Deposition (ED Coat) treated for corrosion resistance

Seat tube clamp size: 28.6mm (2.5Nm max for derailleur clamps and chain guides)

27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)

Bottom bracket: 68mm - English threaded

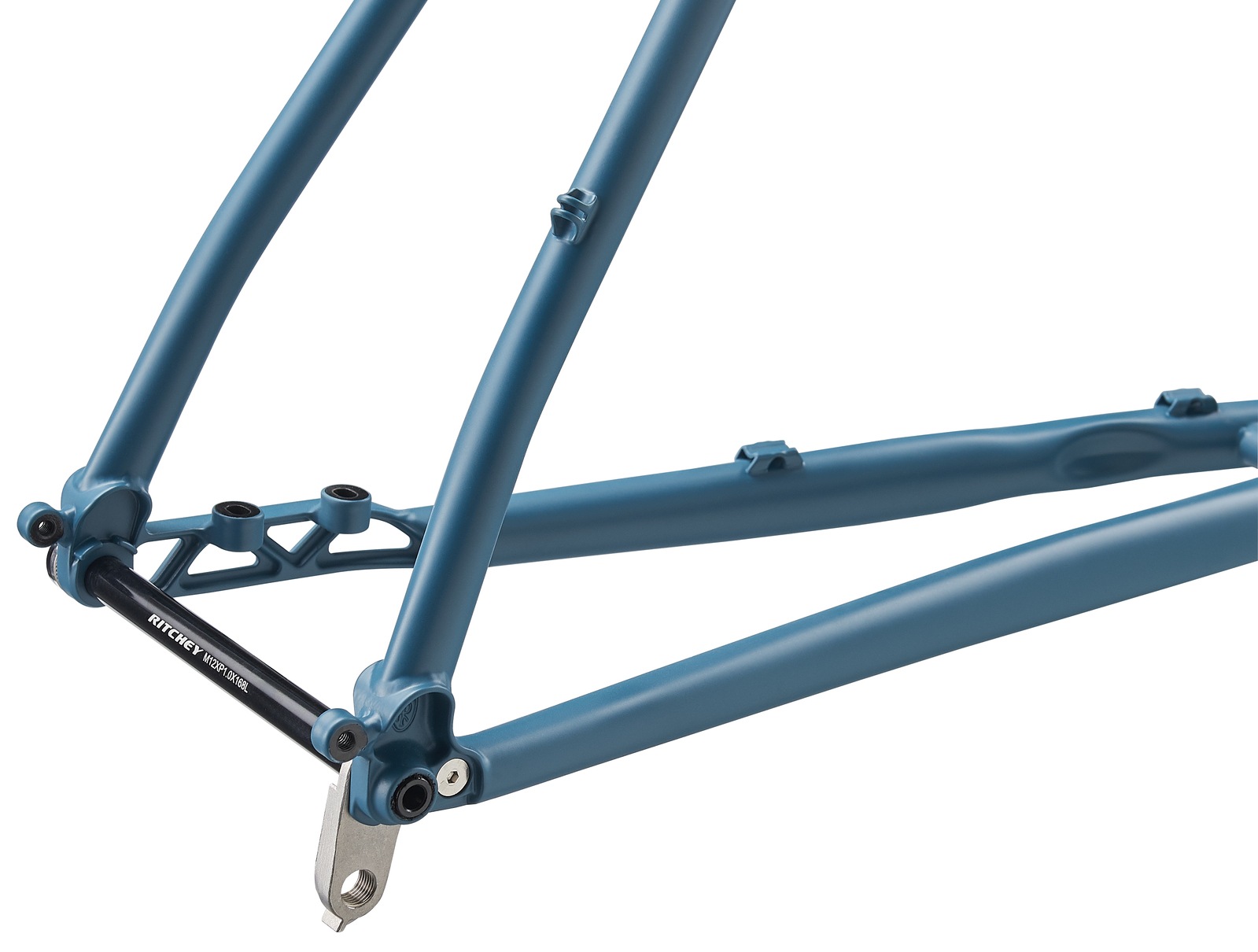

142mm spacing (12mm alloy thru-axle included)

Crankset min/max ring size - single: 36 to 46t / double: 46/30t to 50/34t

Can accommodate 1X or 2X chainrings

Chainline: 49mm

Not compatible with Direct Mount standard and related components (T-Type derailleurs and cassettes)

Bottle cage mounts: 3

Patented Ritchey Break-Away® design

External cable routing

Rack and fender mounts

Replaceable stainless-steel derailleur hanger

WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)

Fork

New Ritchey Carbon Adventure Fork with multi-purpose, rack and fender mounts

1-1/8" straight steerer with integrated 45-degree crown race

Steerer length: 300mm

Fork length: 380mm

Axle-crown: 393mm

Rake/Offset: 50mm

Fork max payload: 3kg per side

100mm spacing (12mm alloy thru-axle included)

30mm maximum spacers below stem

Tire Compatibility

Wheel and tire compatibility: 700 x 48mm or 650 x 2.0in (depending on tire/rim manufacturer)

Frame spacing: 58mm

Fork spacing: 60mm

Brake Compatibility

Flat-mount brakes front and rear: 140mm (160mm max - adaptors available separately)

Frame flat-mount bracket height: 10mm

Housing stops on down tube optimized for mechanical brake coupling

Hydraulic brake compatible (please see brake manufacturer recommendation for traveling with hydraulic brakes)

Details

Frame weight: 2,280g (size L - w/o thru-axle)

Fork weight: 450g (uncut w/o thru-axle)

Color: Swell & Foam

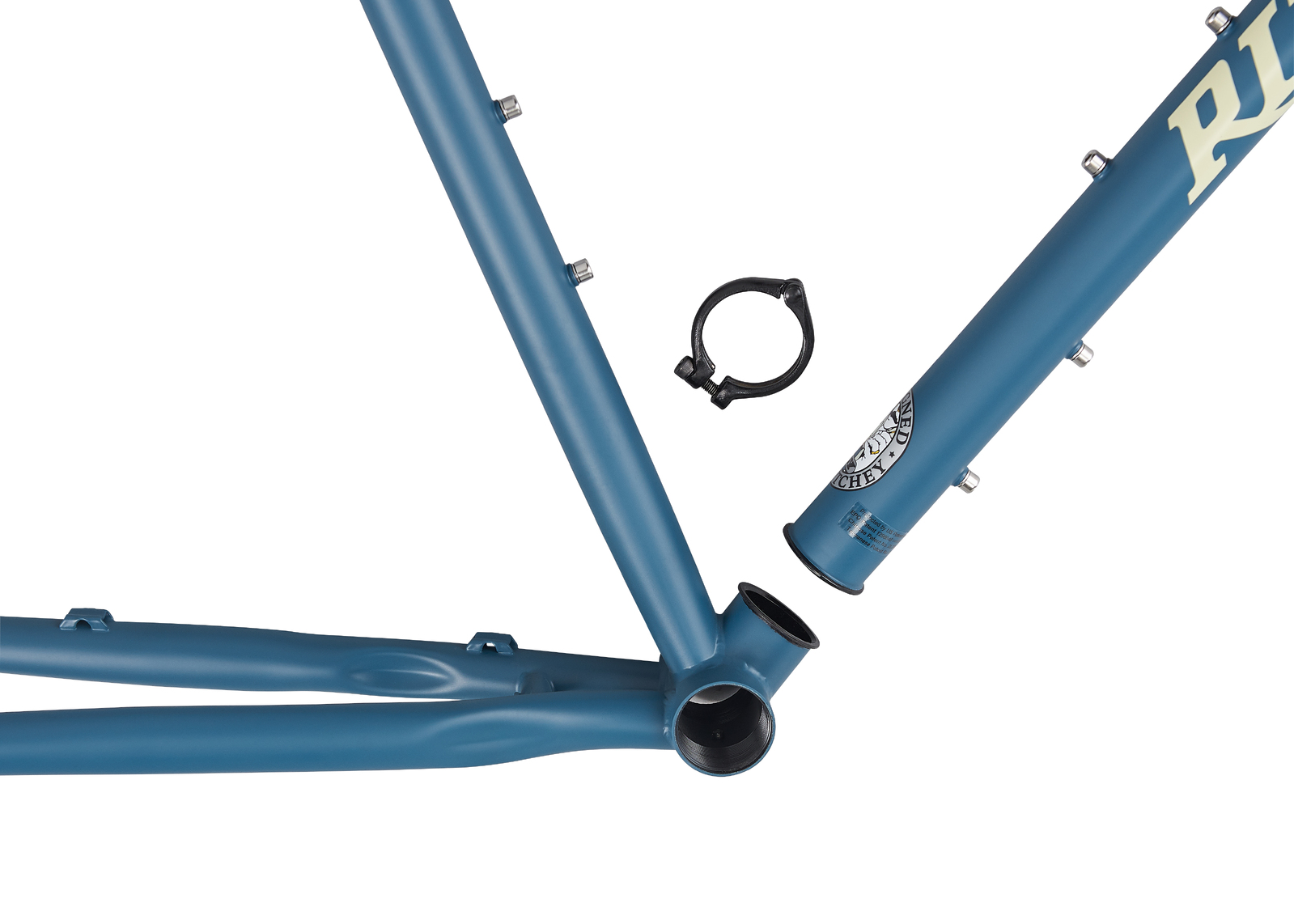

Downtube Break-Away coupler torque: 5Nm (Do not lubricate clamp or clamping area). Torque key not included.

Downtube hinge clamp, rear brake cable connector and derailleur cable connectors included

Packs into included travel case (8.5” / 21.6cm W x 26.5” / 67.3cm H x 31” / 78.8cmL w/ wheels)
