FRAMESET ROAD LOGIC CLASSIC BREAKAWAY TULE FOG (SILVER GREY) LARGE - (97352867022)

FRAMESET ROAD LOGIC CLASSIC BREAKAWAY TULE FOG (SILVER GREY) LARGE - (97352867022)

Your days of navigating airports and taxis with bulky and unruly bike boxes on your way to and from distant cycling destinations are a thing of the past. The legendary steel Road Logic Break-Away is back in the Ritchey stable!

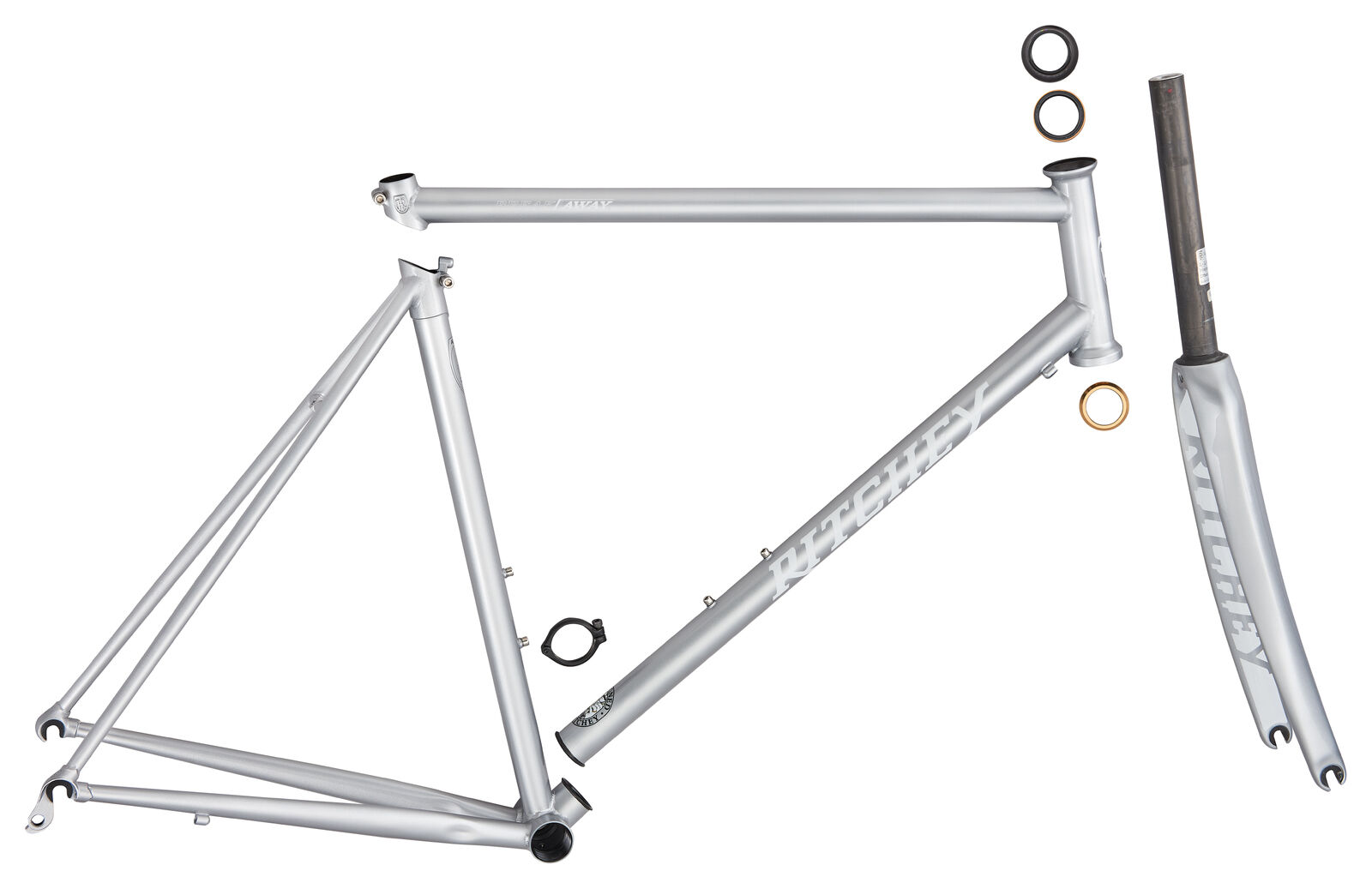

The bike that travels with you, the Road Logic Break-Away easily and quickly disassembles to fit into its own included sturdy travel case that is designed to help you avoid airline extra baggage fees. Once you arrive at your destination, the bike assembles with ease - allowing you to quickly get out and go.

While the main feature of the Road Logic Break-Away is its liberating and innovative travel-friendly design, this unique version of the Road Logic frameset is 100% true to the spirit, spec, and ride quality of its standard frame sibling. The Road Logic Break-Away offers a riding experience that's steeped with more than fifty years of frame building heritage, innovation, and exploration. The beauty of its classic lines unites with modern building techniques and proven materials to deliver a contemporary bicycle that's wonderfully comfortable for long days in the saddle, nimble and stiff enough to win the sprint for that sign, and adequately adaptable to endure roads that might lack proper pavement – be it out your back door or in a different hemisphere.

A modern classic by any measure, the Road Logic Break-Away is crafted with a heat-treated and triple-butted Ritchey Logic tubeset. This steel frameset features aggressively short-butted sections optimized for TIG welding that save weight and improve ride quality. Other features of the Road Logic Break-Away frameset include Ritchey’s proprietary forged-and-machined integrated head tube that uses standard drop-in bearings which saves 80 grams over a standard head tube design, spacing for up to 30c tires, and a Ritchey Carbon Fork for precise handling and plenty of tire clearance.

The Road Logic Break-Away is sure to set you free to experience a lifetime of pedal turns - wherever you land and wherever they might lead you.

Tech Specs

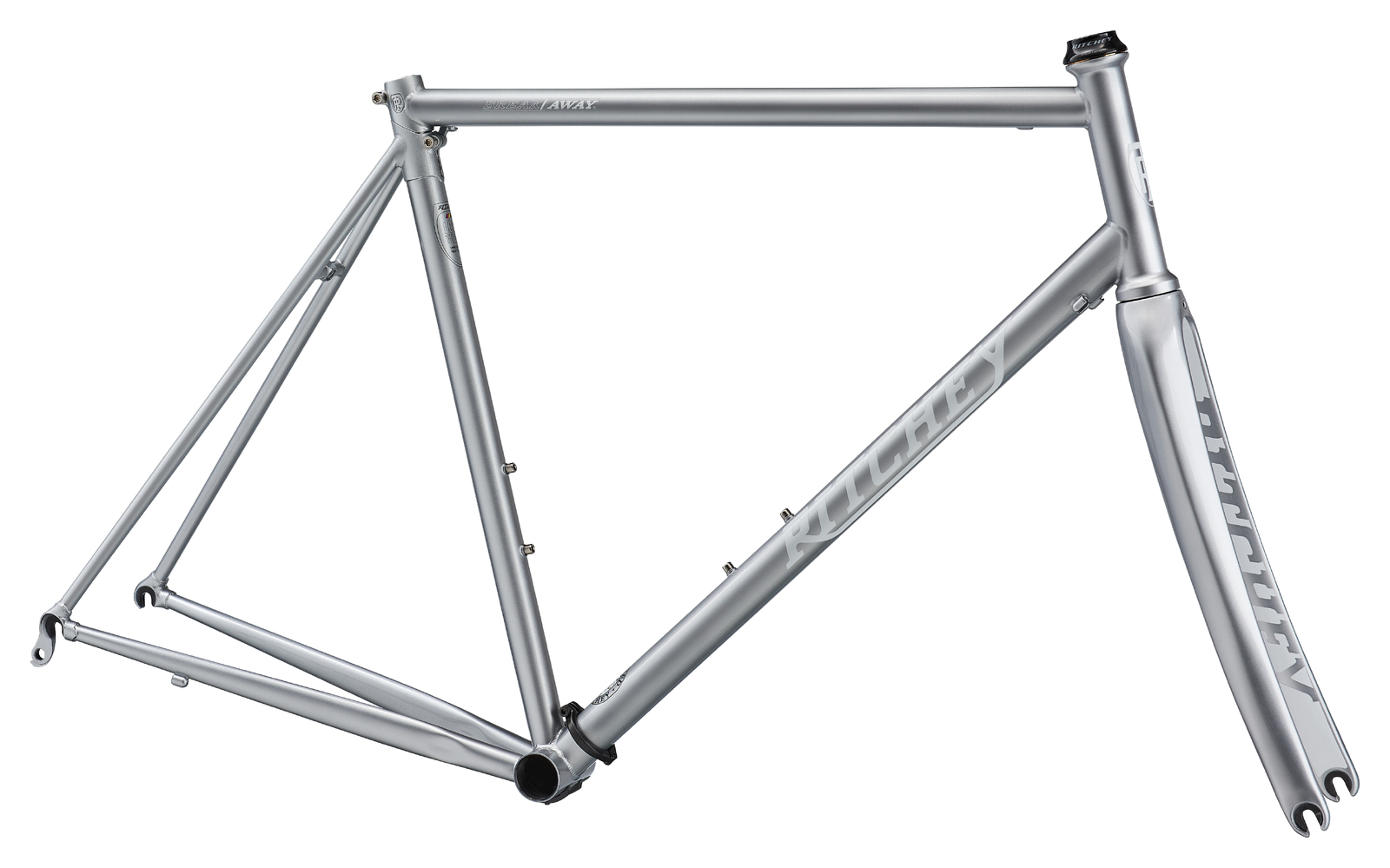

Frame

Material: heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded

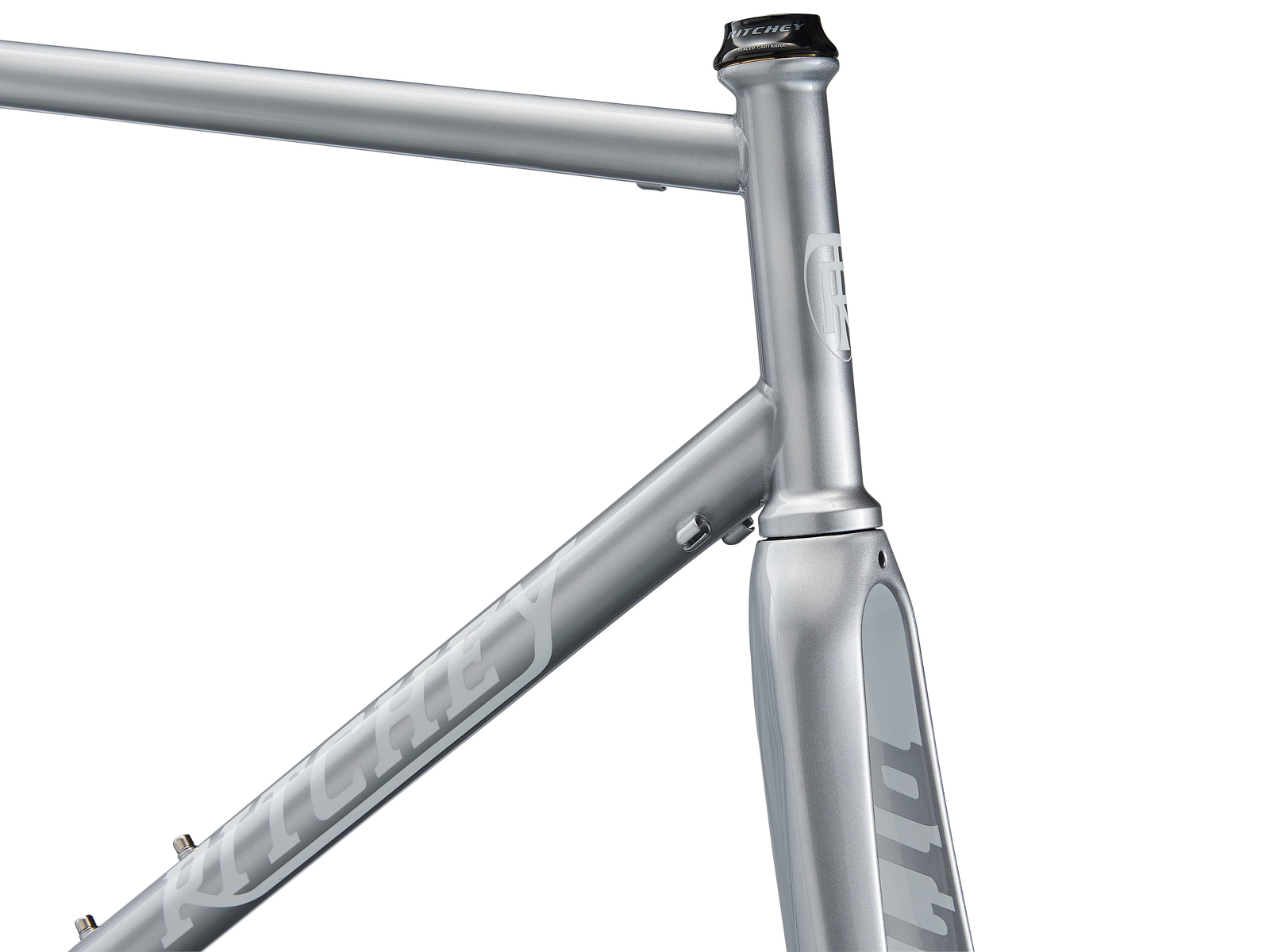

Ultra-light forged and machined straight 1-1/8" headtube

Electrophoretic Deposition (ED Coat) treated for corrosion resistance

Seat tube clamp size: 28.6mm (2.5Nm max for derailleur clamps and chain guides)

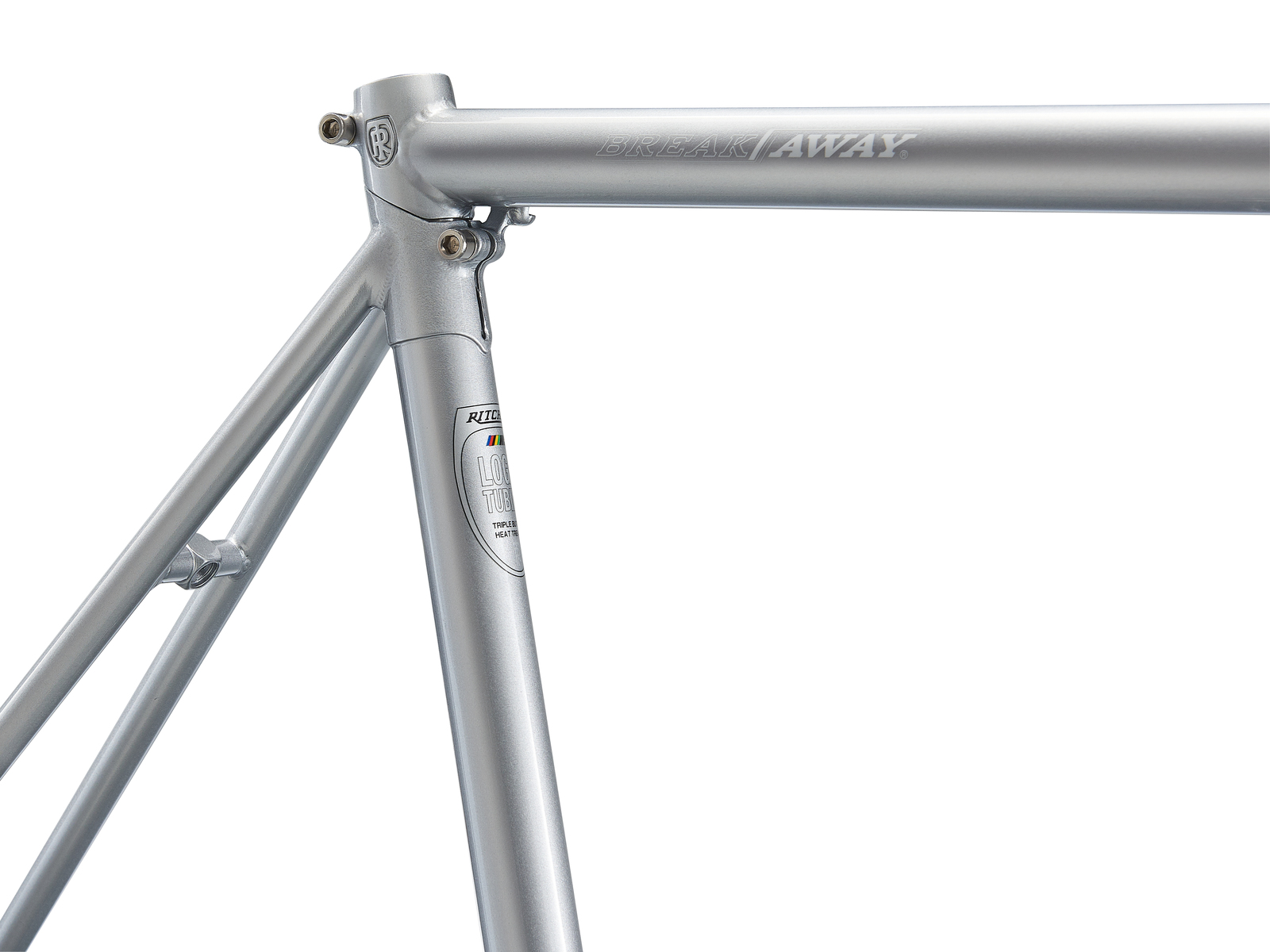

27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)

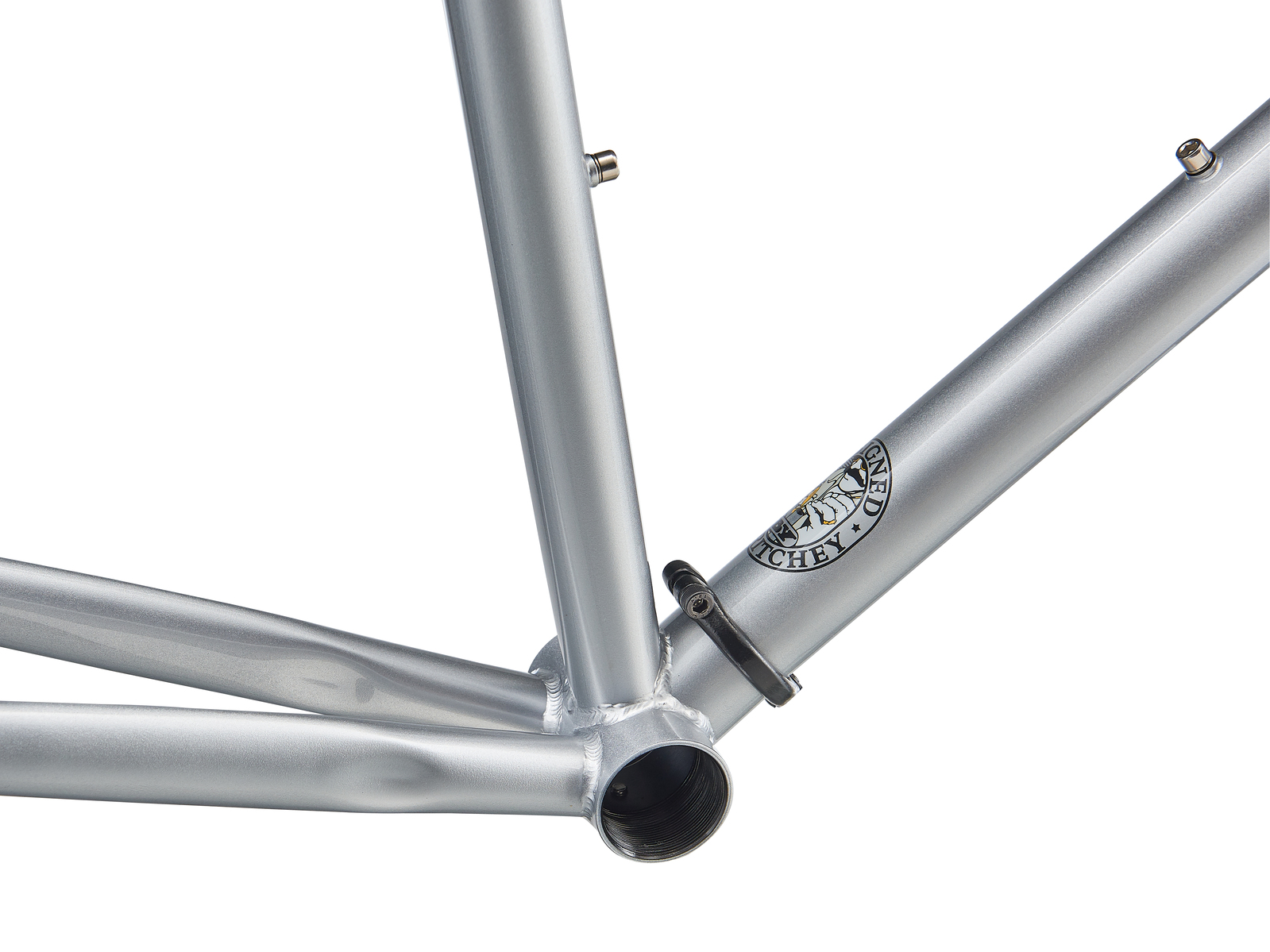

Bottom bracket: 68mm - English threaded

Crankset min/max ring size - single46/30t to 53/39t

Bottle cage mounts2

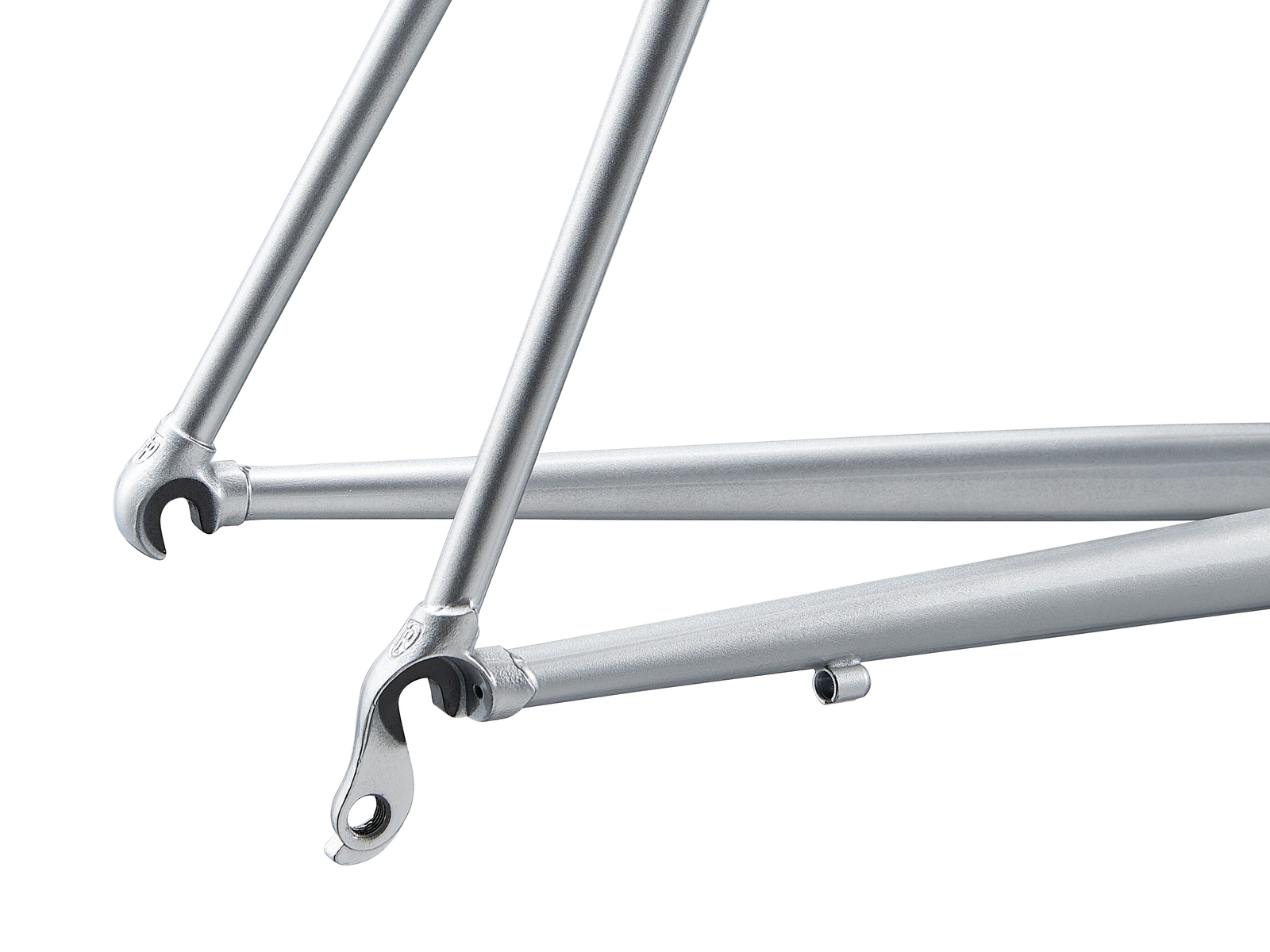

Standard Quick Release front and rear

External cable routing

WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)

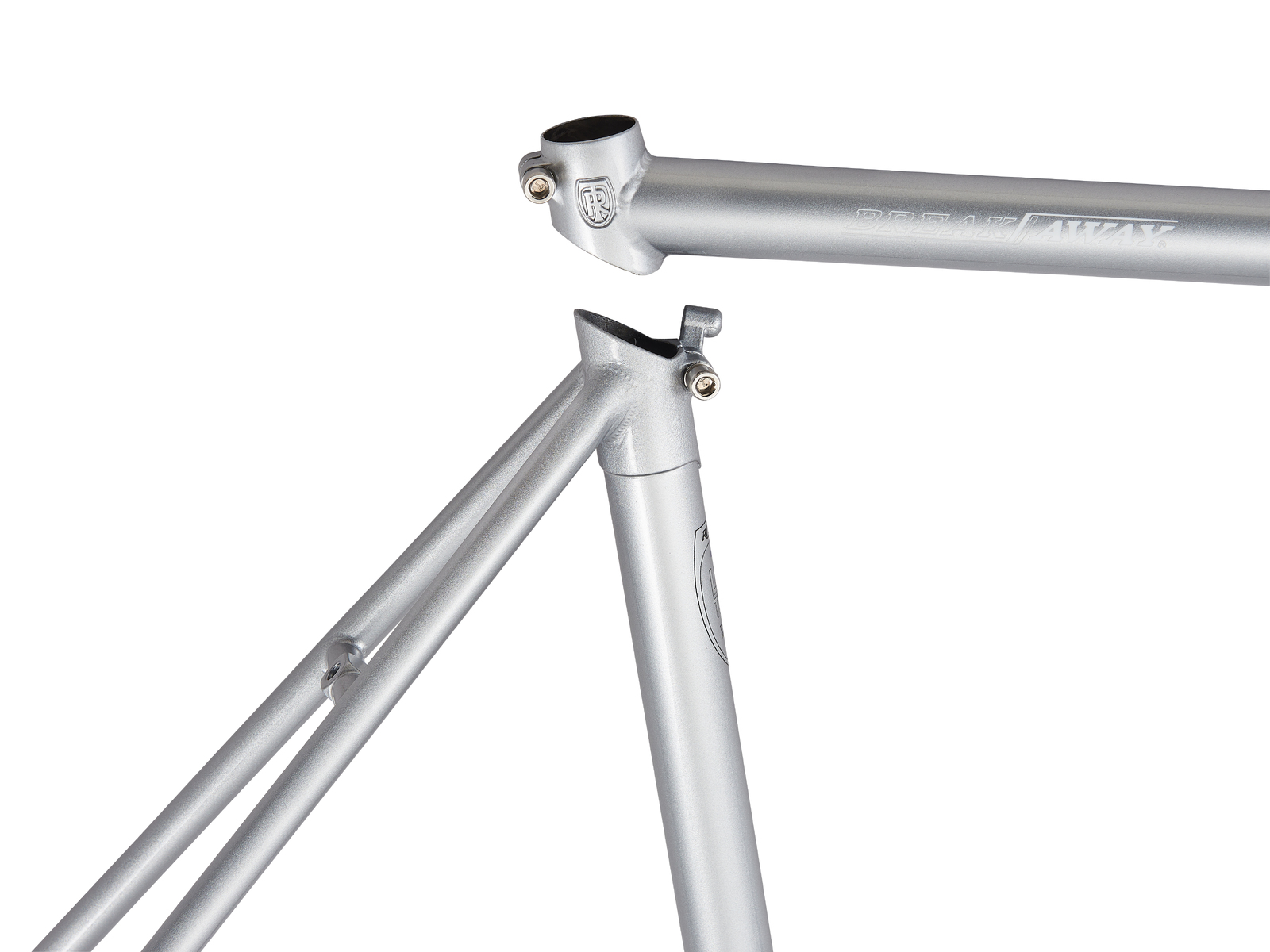

Patented Ritchey Break-Away® design

Fork

Ritchey WCS Carbon Road Fork included

1-1/8" straight steerer with integrated 45-degree crown race

Steerer length: 300mm

Axle-crown: 371mm

30mm maximum spacers below stem

Tire Compatibility

Wheel and tire compatibility: 700 x 30c tire clearance (depending on tire/rim manufacturer)

Frame spacing: 38mm

Fork spacing: 40mm

Details

Sizes: M / L / XL

Frame weight: 1,950g (size L)

Fork weight: 380g (uncut steerer)

Color: Tule fog

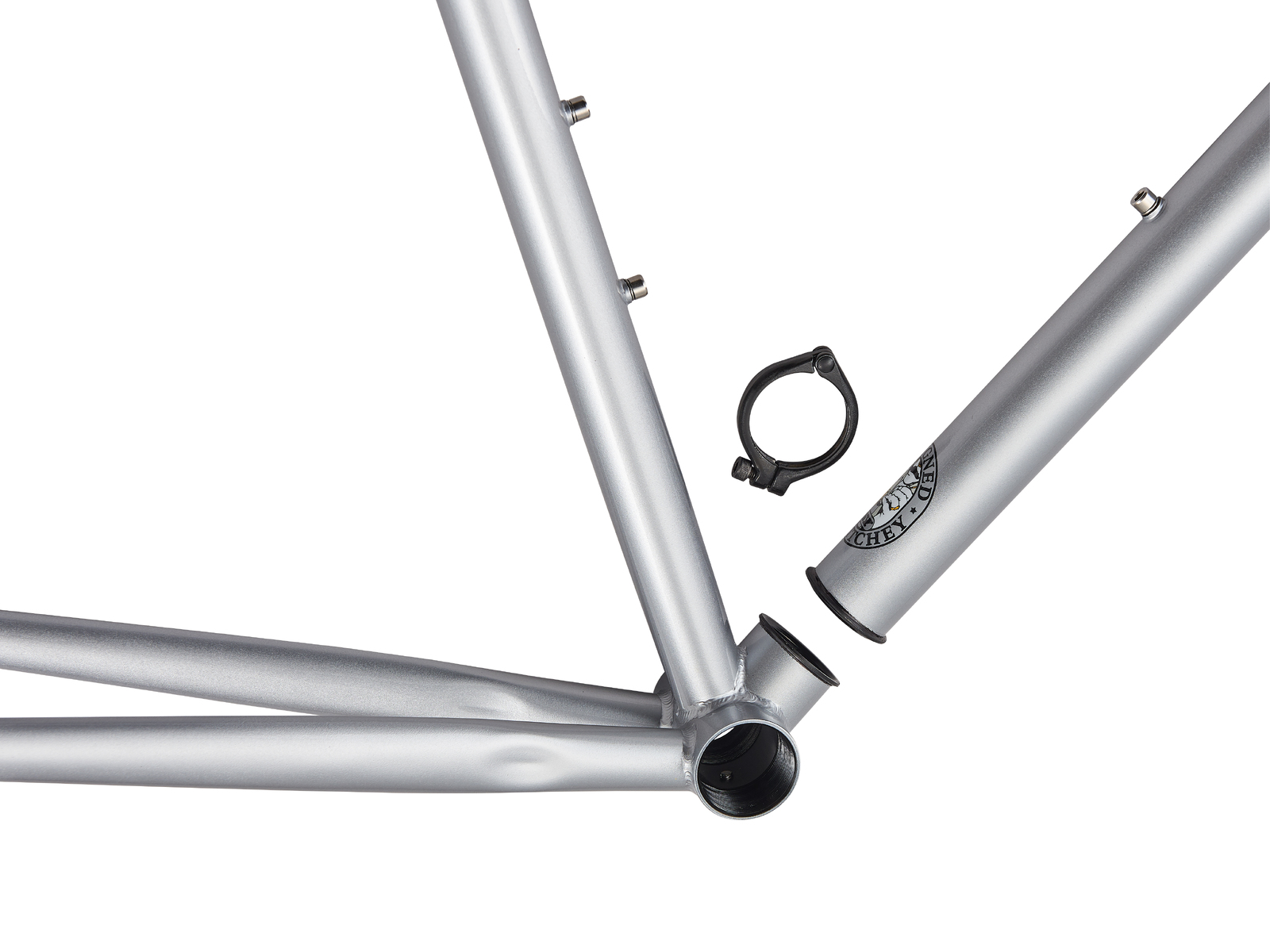

Downtube Break-Away coupler torque: 5Nm (Do not lubricate clamp or clamping area). Torque key not included.

Downtube hinge clamp, rear brake cable connector and derailleur cable connectors included

Packs into included travel case (8.5” / 21.6cm W x 26.5” / 67.3cm H x 31” / 78.8cmL w/ wheels)
