FRAMESET ULTRA SMALL Black - (97452817005)

RITCHEY P-29er

You’ve sent emails. We’ve seen your social media posts. You have told us at countless events around the world. We’ve heard you loud and clear: You yearn for the return of the legendary P-29er to the Ritchey line-up.

Well, here you go, World!

The P-29er is back.

Tom Ritchey loves riding mountain bikes, and he created the Ritchey P-29er so you could share the same kind of experiences he’s been enjoying on trails for most his life. Designed for ripping tight, twisty, and technical cross-country singletrack, the P-29er is the latest manifestation of Ritchey’s deep heritage of mountain bike history. This sublime frameset represents everything Tom loves about mountain biking – roots, rocks, fun, and endless adventurous experiences deep in the woods.

The frame of the P-29er is built with Ritchey’s proprietary triple-butted Logic steel tubing. That combines with its modern XC geometry to deliver a breathtakingly balanced ride – beautifully mixing a snappy and responsive soul with a comfortable and predictable personality. The P-29er is the ultimate cross-country mountain bike.

With its pedigree firmly rooted in the decades-deep lineage of its P-series predecessors that helped define the sport of mountain biking, this latest version of the P-29er is very much a modern machine with features demanded by today’s XC riders. It boasts BOOST spacing along with stealthy dropper post routing and an ultralight forged tapered headtube. It fits tires up to 2.3” and is built around a 100mm-travel fork. All of this comes together to enshrine the P-29er as a monument to the spirit of endless singletrack adventure.

TECH SPECS
Material - heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded Ultra-light forged and machined tapered head tube Electrophoretic Deposition (ED Coat) treated for corrosion resistance
Headset - WCS headset included (upper IS42/28.6 | lower IS52/40) Headset upper bearing - 41.8mm OD / IS42/28.6 (S.H.I.S.) Headset lower bearing - 51.9mm OD / IS52/40 (S.H.I.S.)
Seat tube clamp size - integrated (2.5Nm max for chain guides – 28.6mm clamp) 27.2mm seat tube with stealth dropper routing
Bottom bracket - 73mm - English threaded
Crankset maximum ring size - 38T single Designed for 1X chainrings
Chainline - 52mm
Recommended tire size - 29x2.25 (2.3 max) - tire size varies by rim and tire manufacturer
Post-mount rear brake - 160mm (180mm max - adaptors available separately)
Bottle cage mounts - Two (one on downtube and one on seat tube) *Note: size small frames include only a downtube bottle cage mount
Sizes - S (15") / M (17") / L (19") / XL (20.5")
Weight - 2,315g (M/17")
Colour - Dirt in Blood
BOOST 148mm spacing (12mm alloy thru-axle included)
Optimized for 100mm (BOOST) suspension travel fork or 500mm axle-crown rigid fork
External cable routing
Replaceable stainless-steel derailleur hanger



**********************************************************************

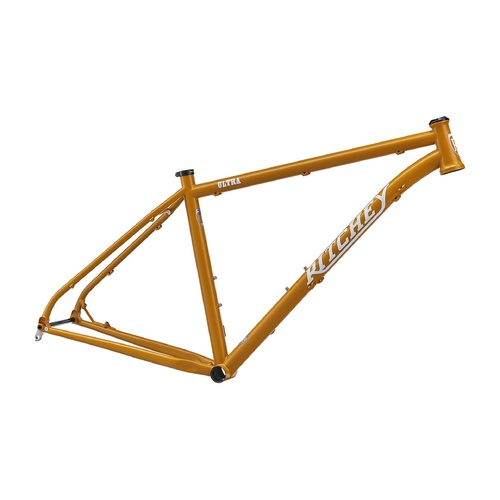

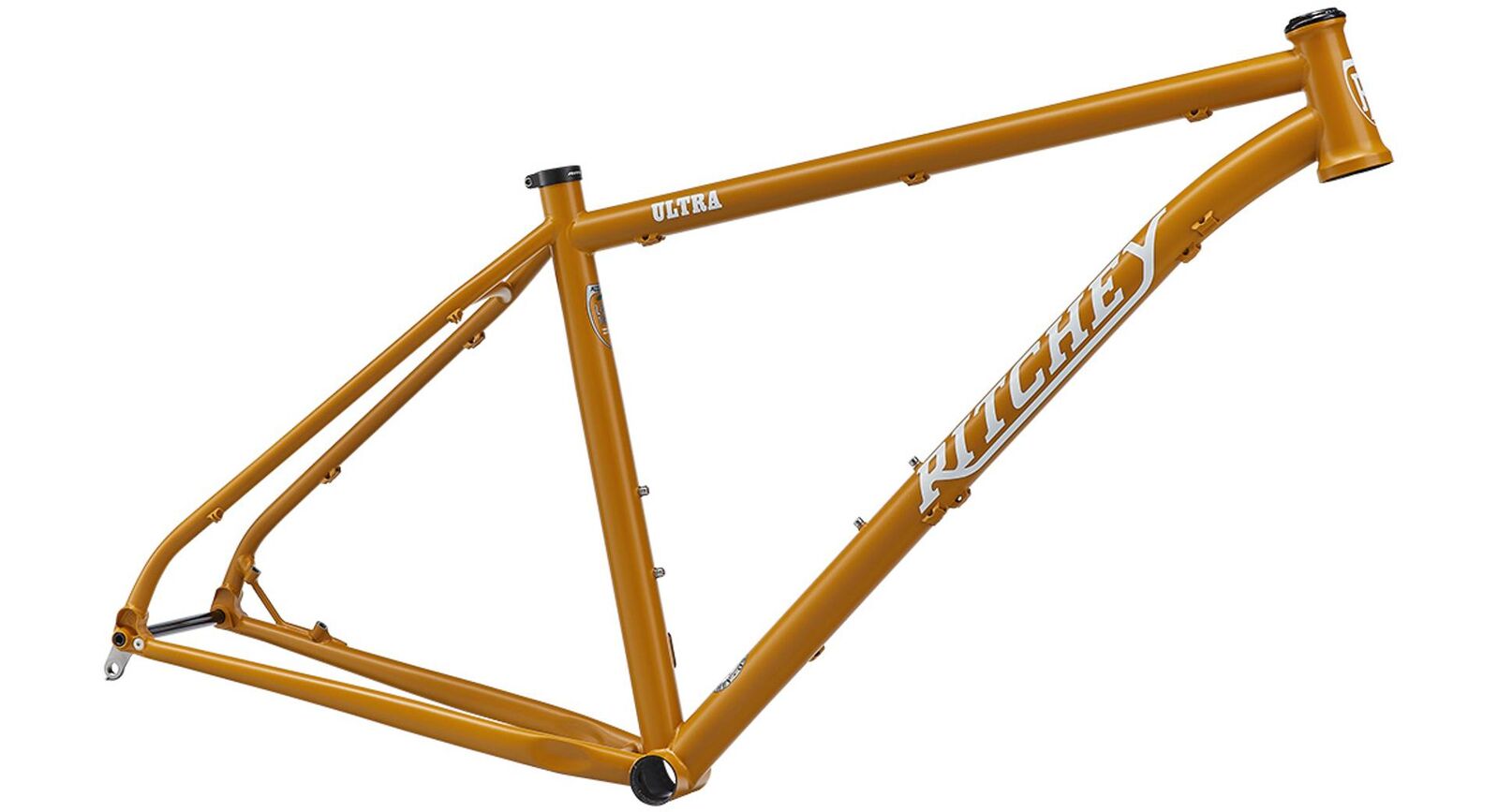

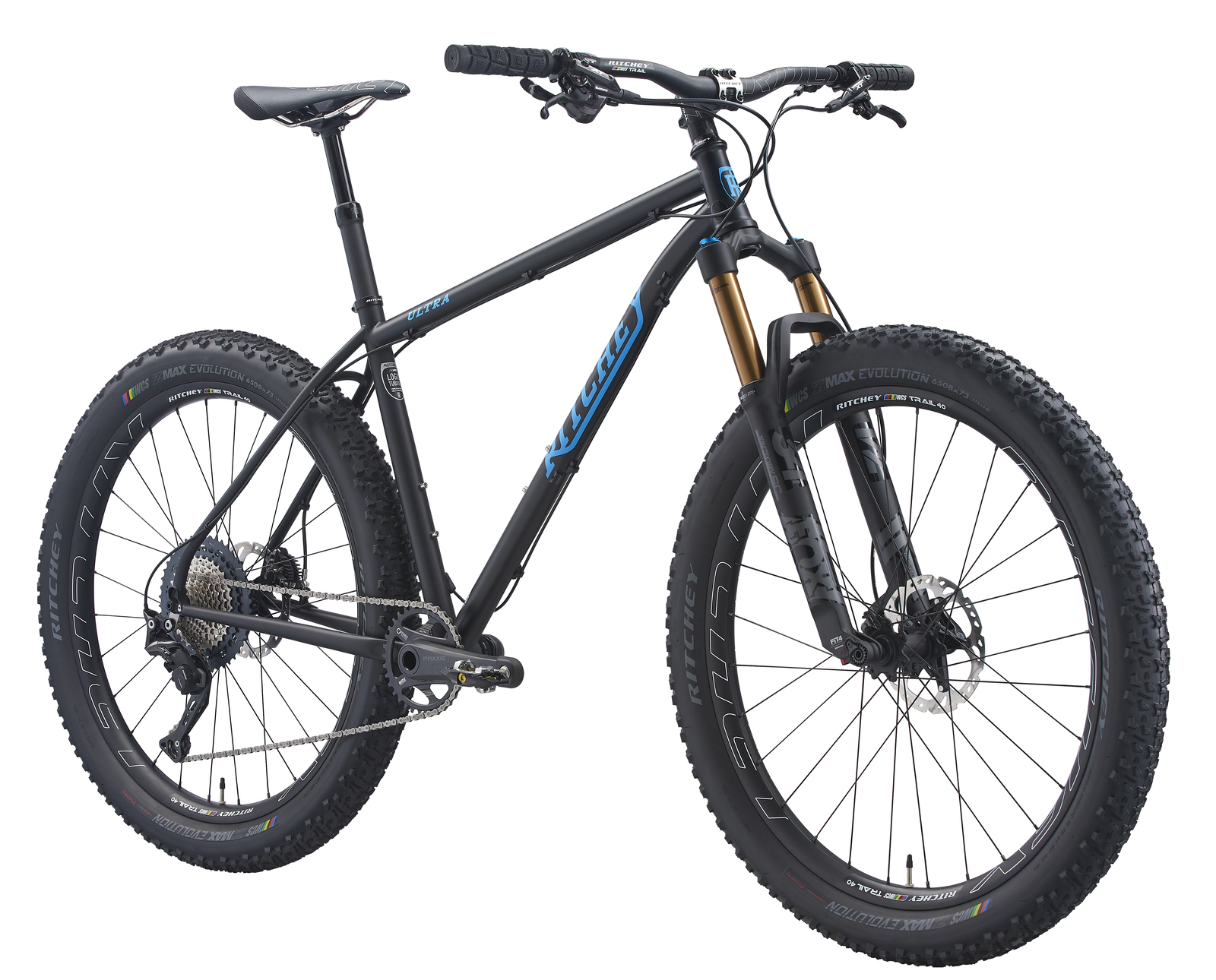

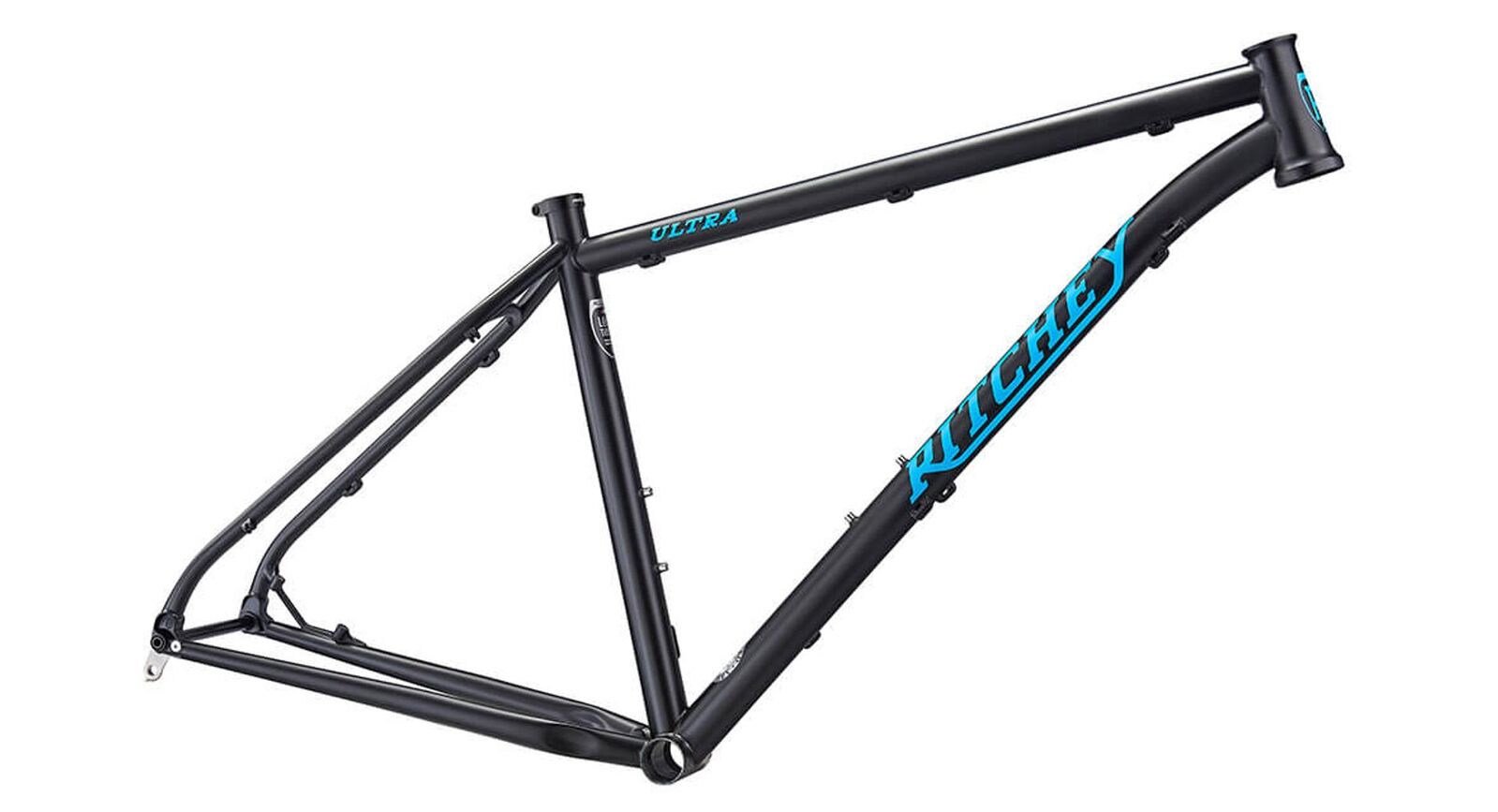

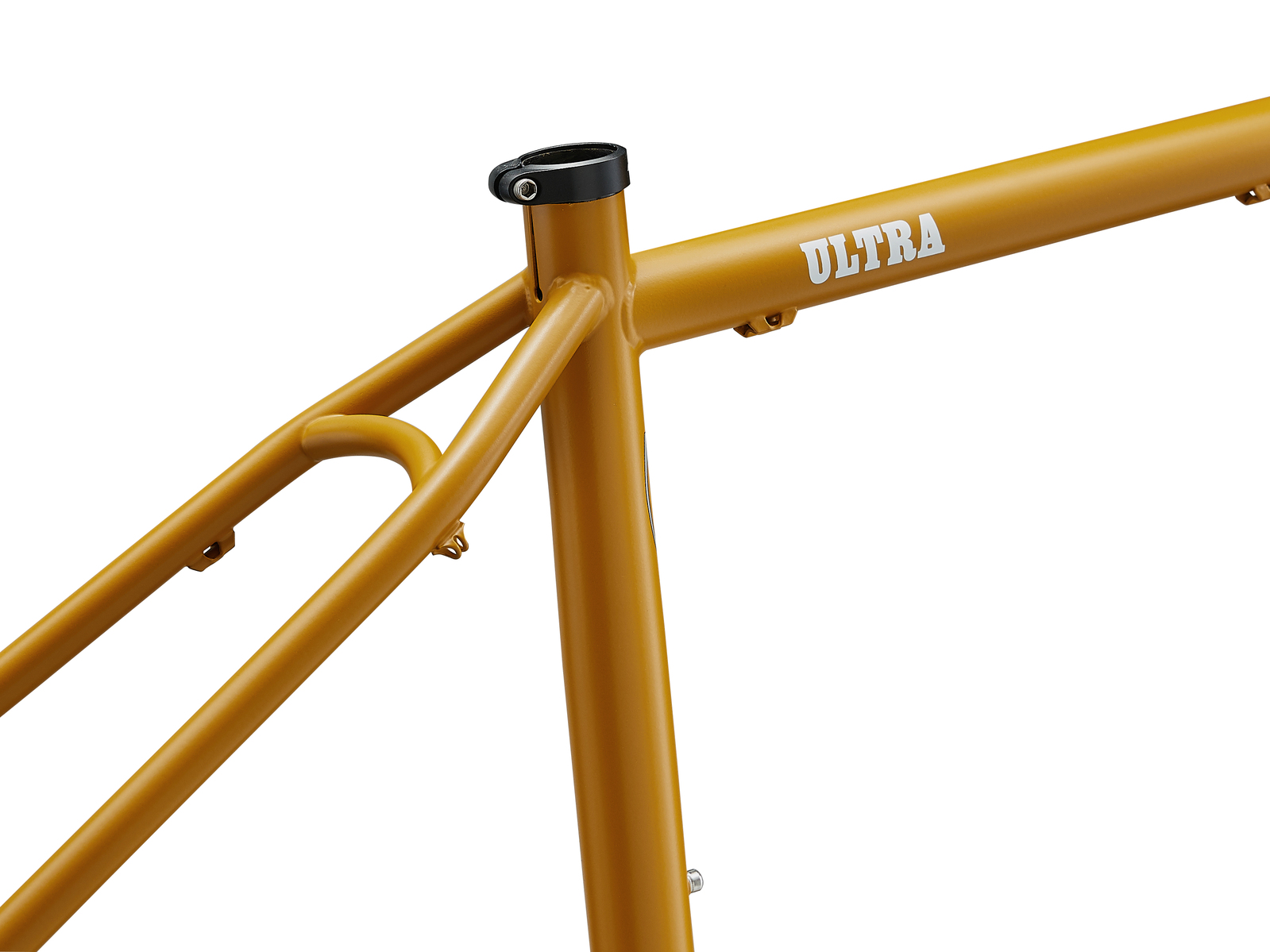

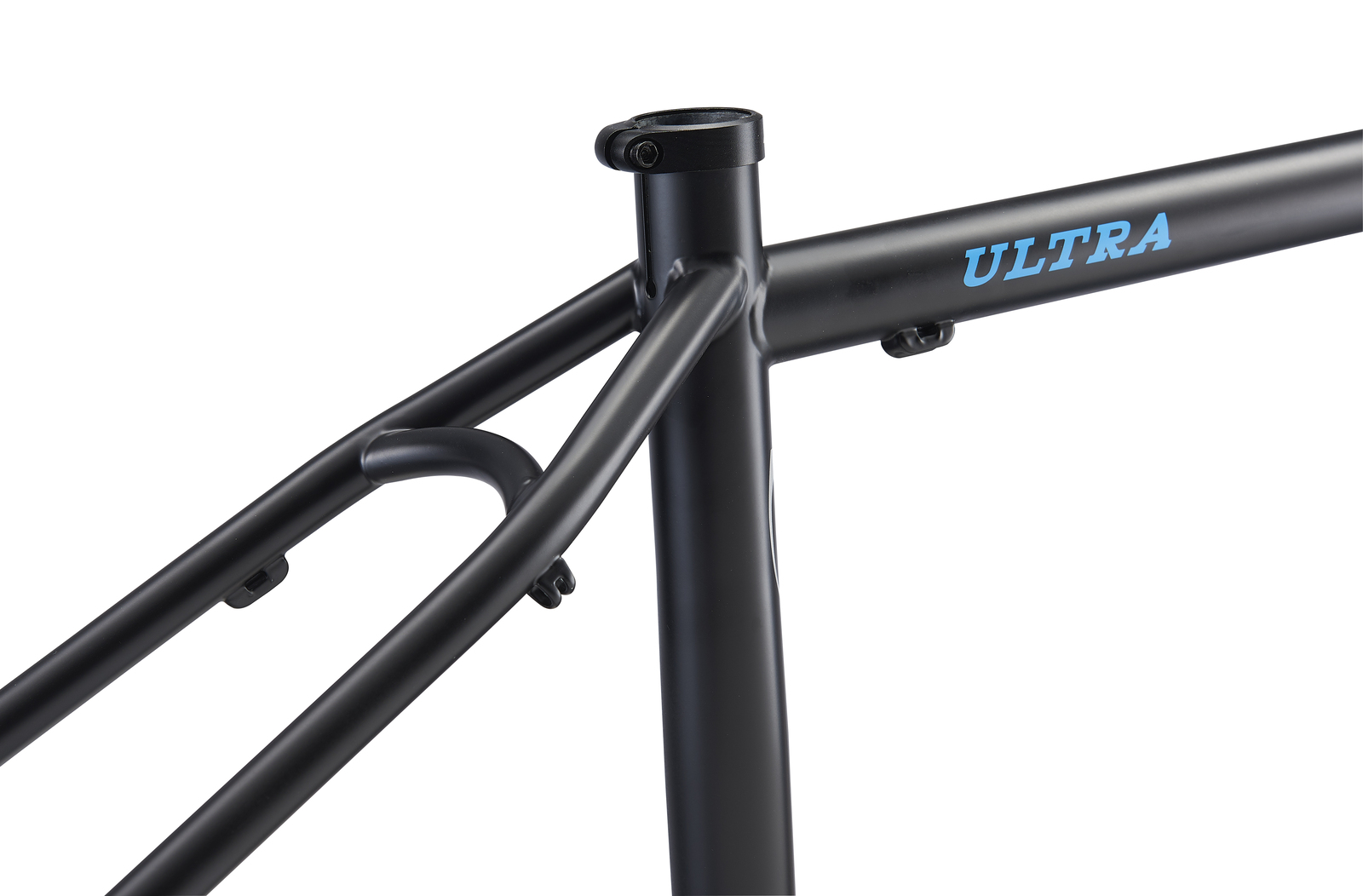

RITCHEY ULTRA
When Tom first designed the Ultra he knew it would appeal to riders who demand specific ride characteristics and dirt slaying only he could deliver- and that was in the 1980s! Good design withstands the test of time, and the latest iteration of the Ultra is a prime example.

Like its predecessor from 30 years prior, the new Ultra occupies a unique ride space from cross-country riders looking to get rowdy and go big to enduro riders lusting for some all-mountain shredding.

Designed around a 120mm travel fork and super stable Boost 148 spacing, most of the fun is in the wheels. Designed to accommodate 29” or 27.5” wheels, the Ultra is highly versatile. Throw on some 29s for some trail-smashing XC riding, or saddle up some 27.5+ for some serious no-holds-barred shredding.

The Ultra is a rough and rugged trail master that doesn’t know when to quit.

SPECIFICATIONS
• Compatible with 27.5 x 2.8 and 29 x 2.4 tires
• Internal routing for a dropper post
• Boost 148x12 rear spacing
• Material: Ritchey Logic Tubing
• Optimized for 120mm suspension travel

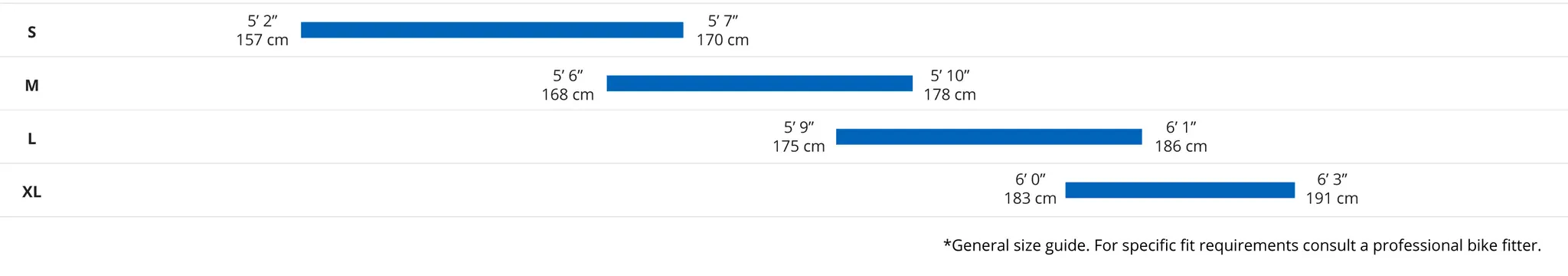

• Sizes: S (15”), M (17”), L (19”), XL (21”)

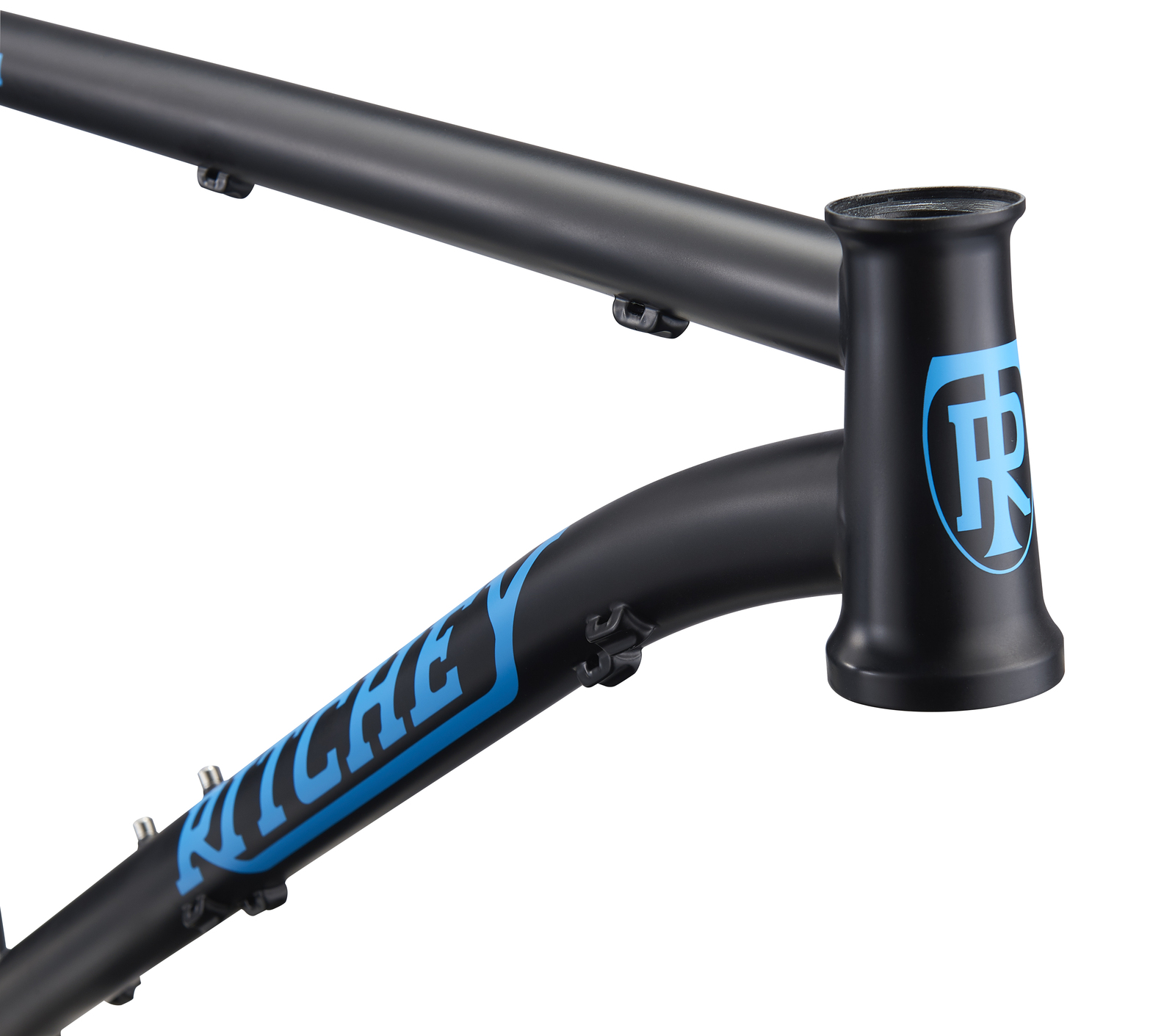

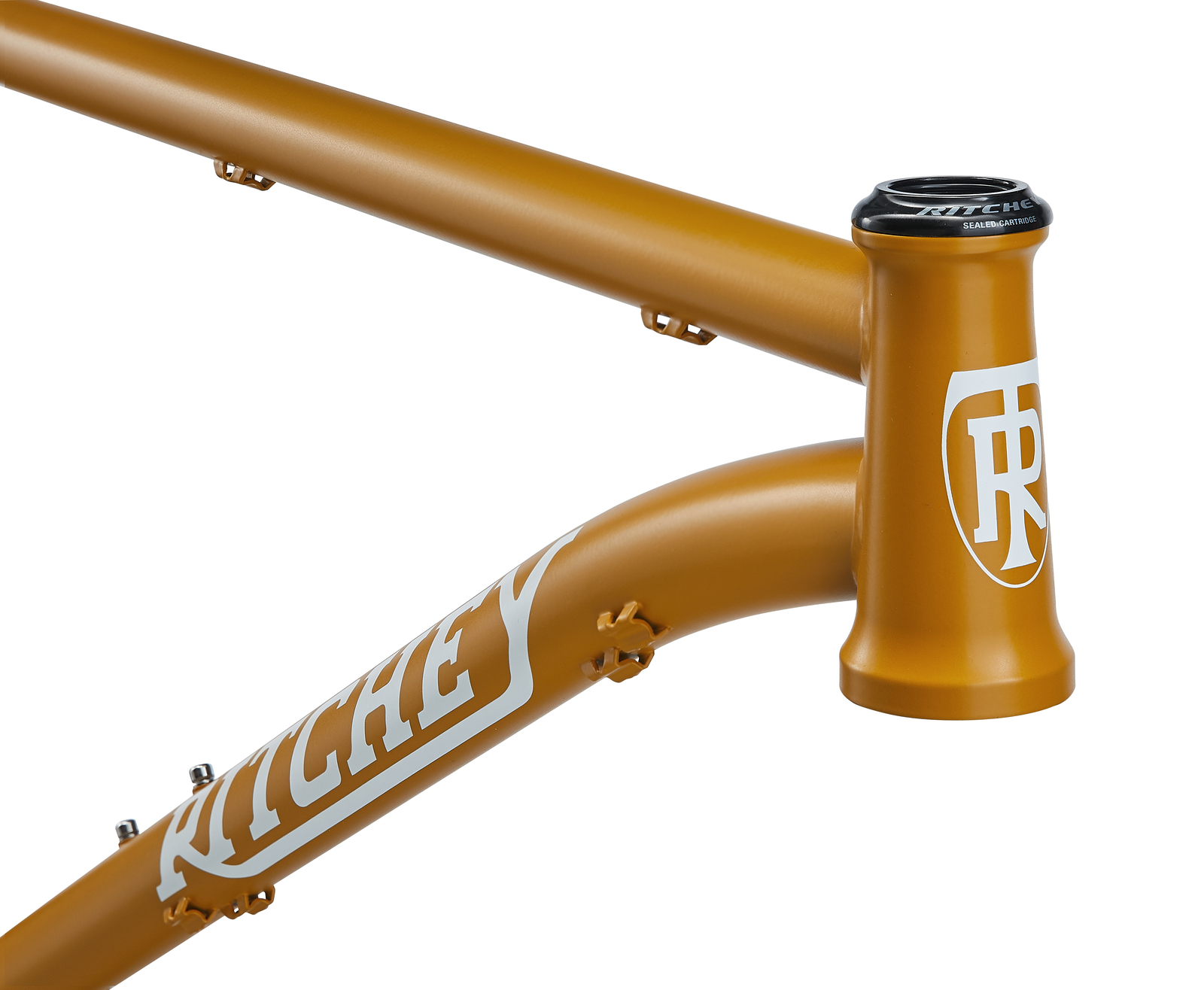

• Ultra-light Forged and machined tapered head tube
• Integrated 1.5” tapered Drop-in Headset - WCS headset included (upper IS42/28.6 - 9.8mm stack height | lower IS52/40)
• Fits up to 27.5”x2.8” or 29”x2.4” tires

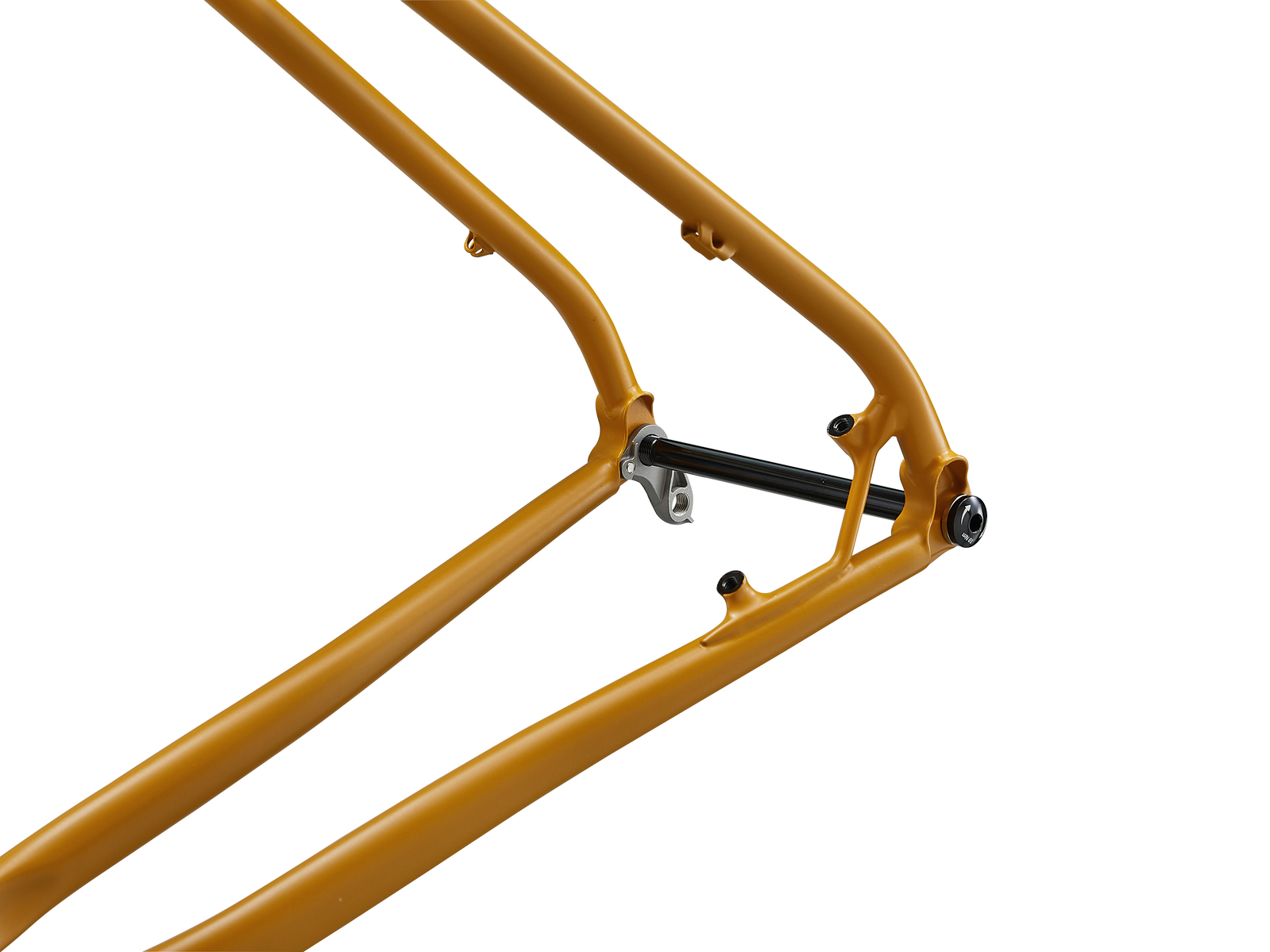

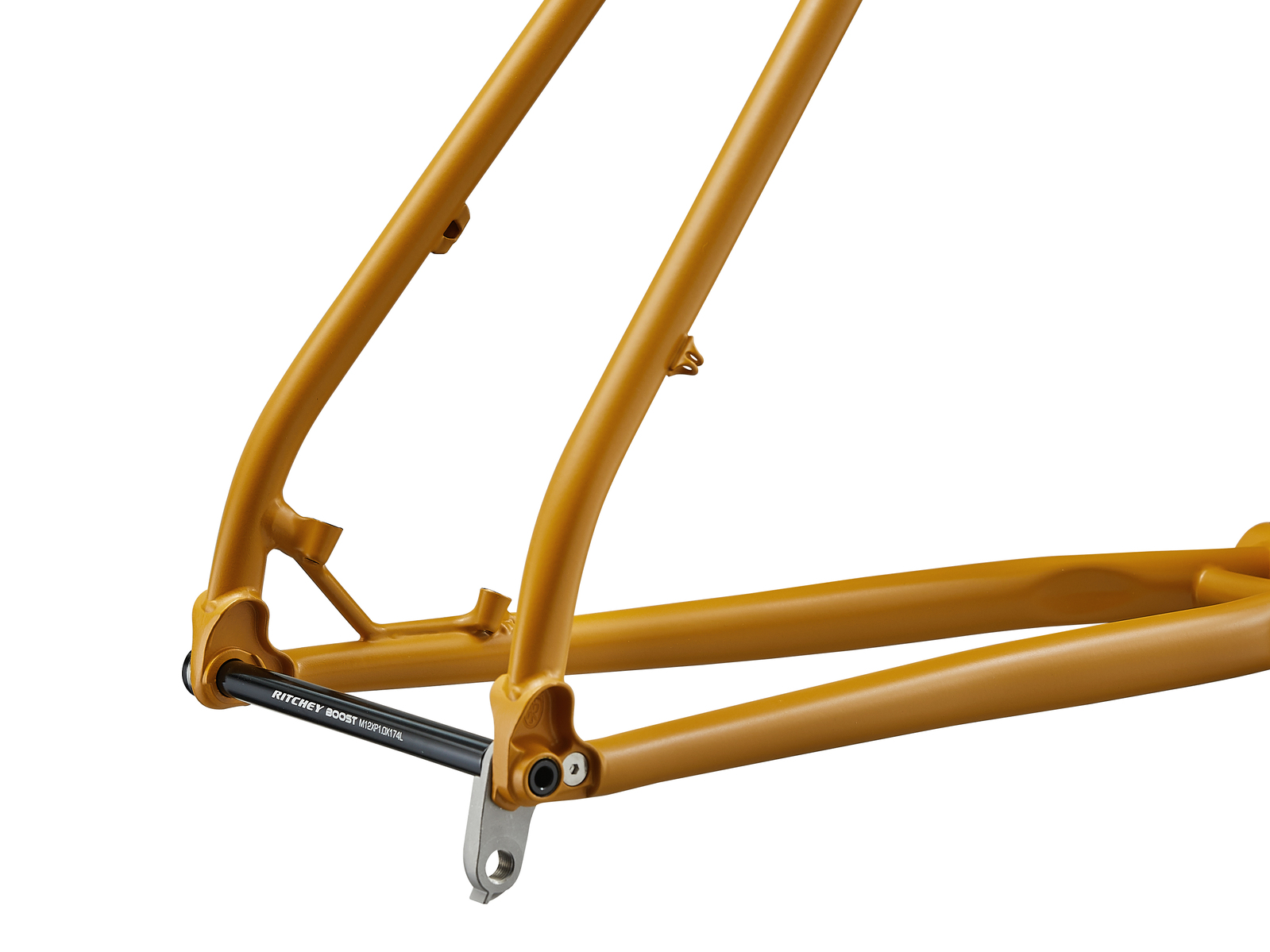

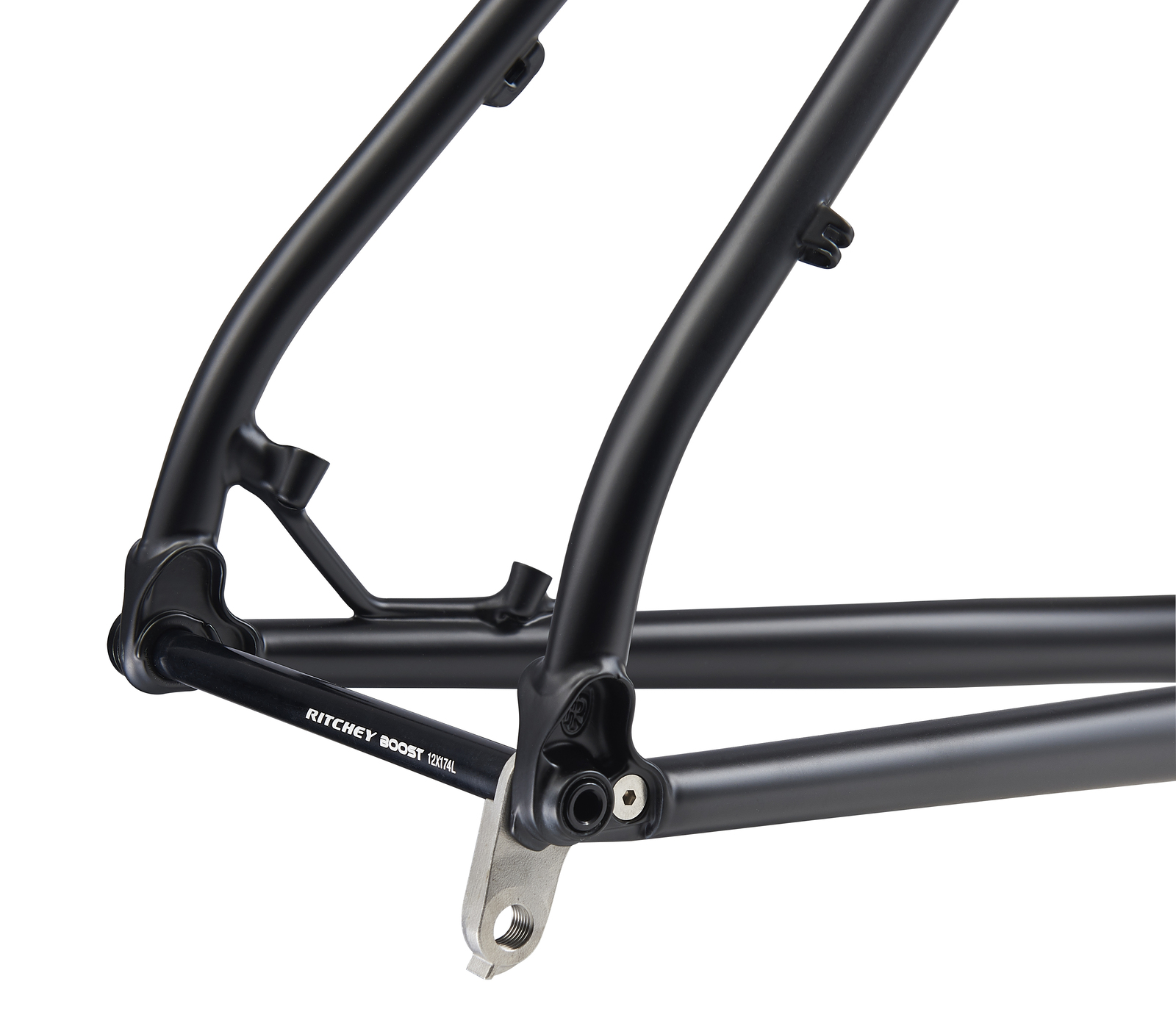

• 148 x 12mm rear end with replaceable stainless steel derailleur hanger
• 30.9mm seat tube with stealth dropper routing
• Designed to accommodate 1X or 2X chainwheels
• Front derailleur clamp: 34.9mm

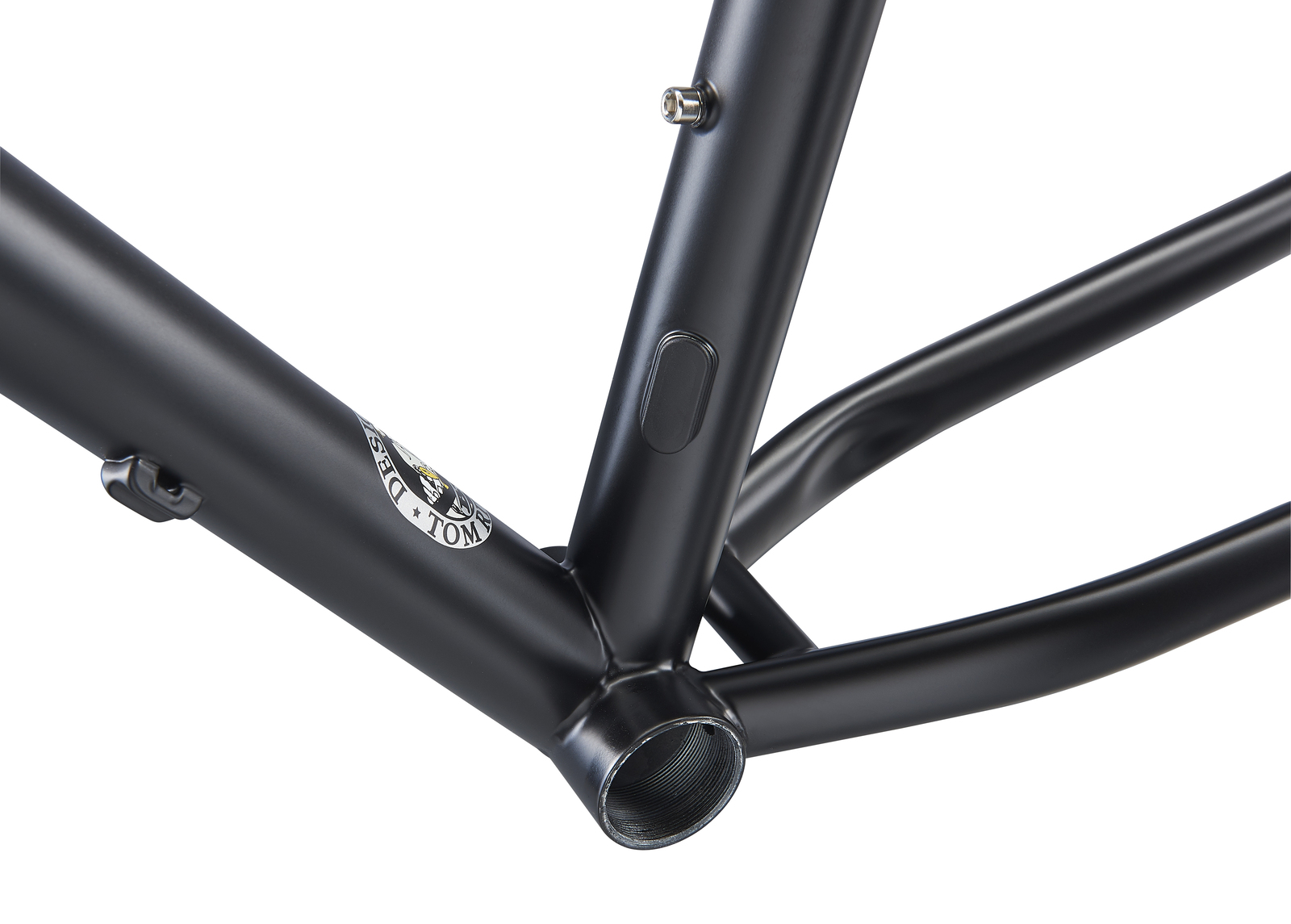

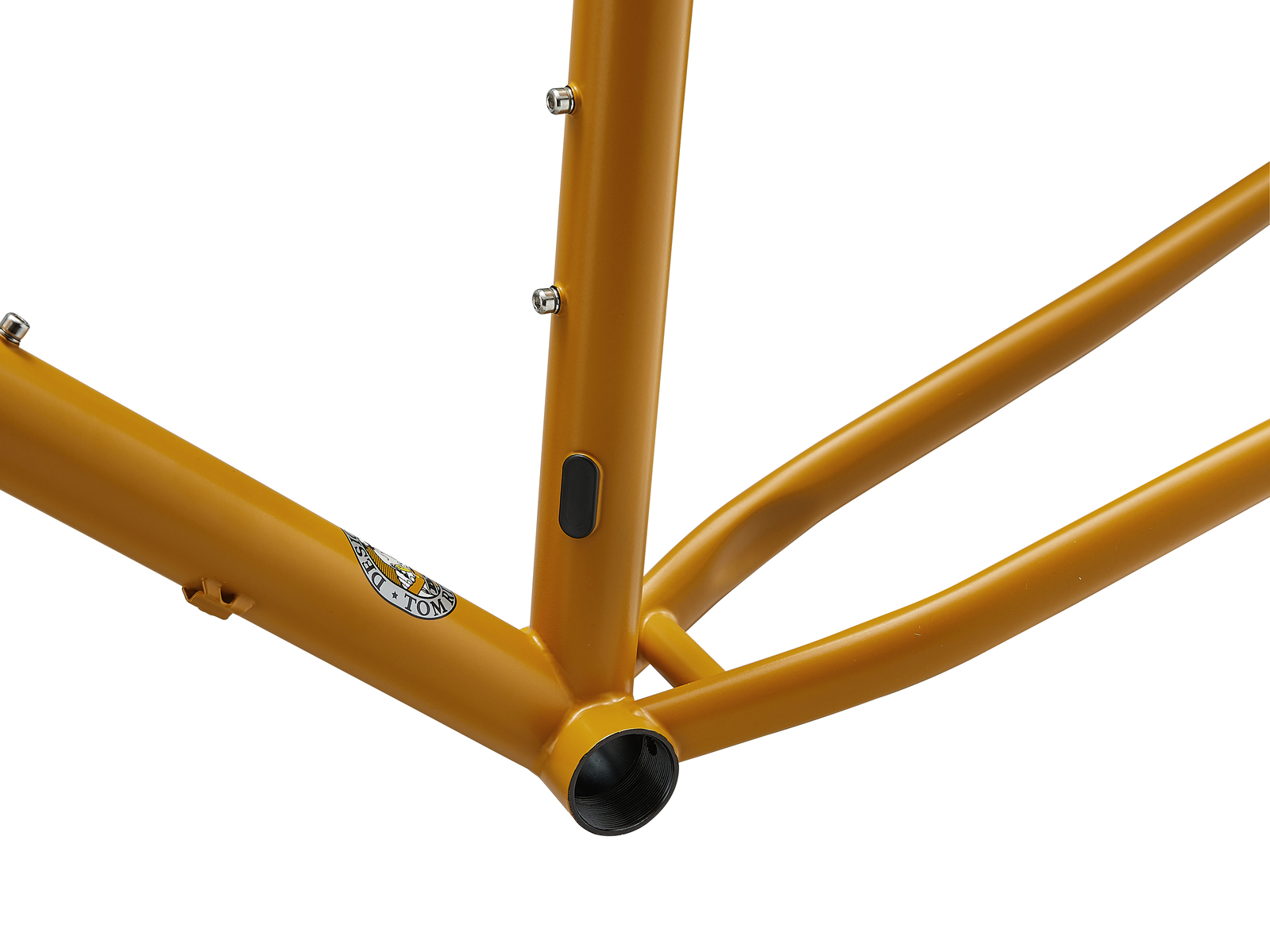

• Bottom Bracket: 68mm English
• Color: Sierra Slate or *NEW* Honey Mustard
• Weight: 2570g (L/19”)

BIKE FRAMES
It can be said that Ritchey steel bike frames are as iconic as the European masters that came before. Truly contemporary classics, Ritchey bike frames are for discerning cyclists who want a timeless bicycle that is sure to be the subject of discussion at any club ride or local. From the forged, machined headtube to the force directional, location-specific butted tubing,

Ritchey bikes are more than classy steel frames. They're a logical choice when looking to build up your next dream bike.
