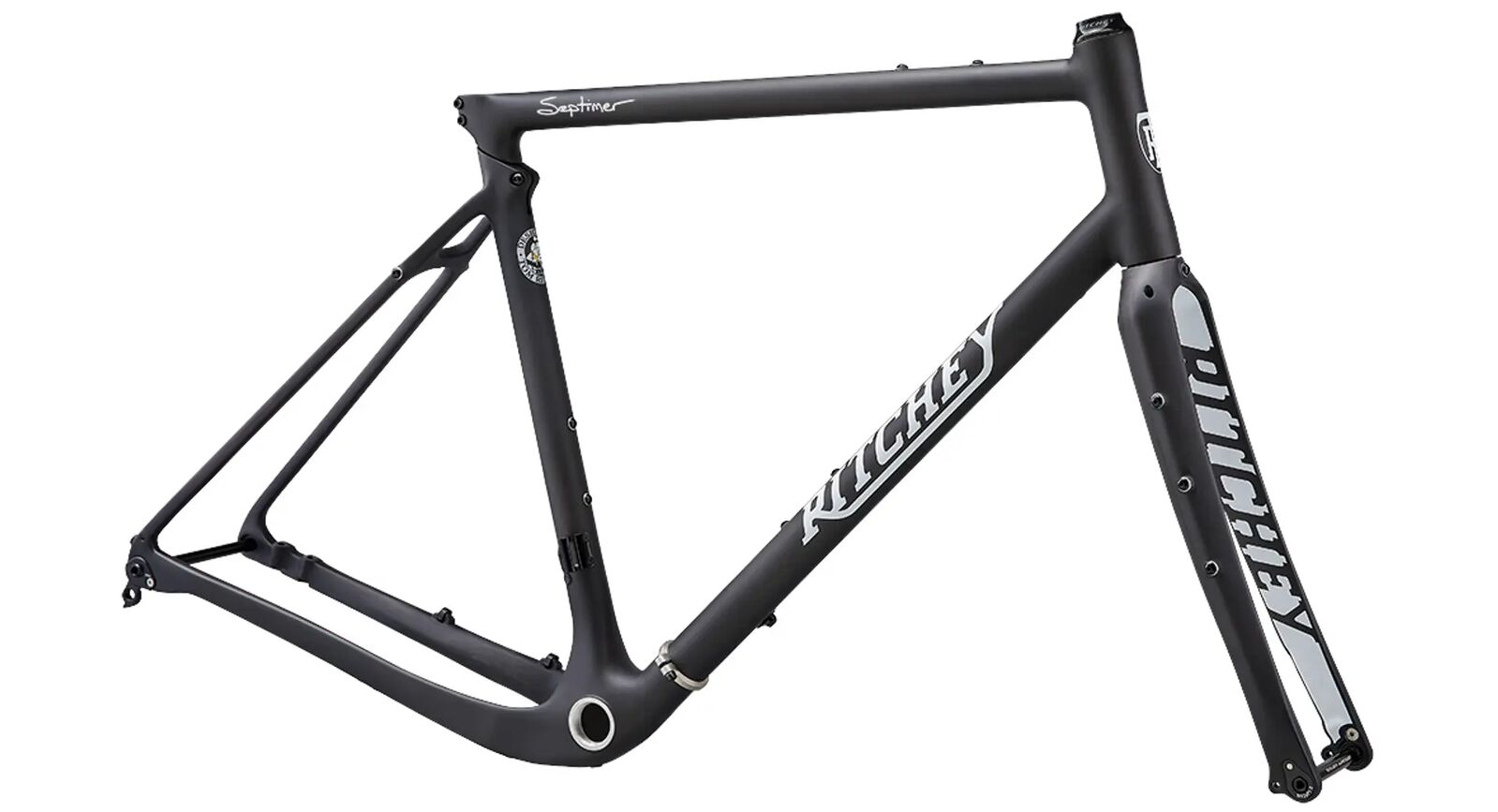

FRAMESET BAB SEPTIMER LARGE UD CARBON - (796941975452)

Named after the Septimer Pass, which stretches between the border of Switzerland and Italy, Ritchey’s Septimer spans Tom Ritchey’s concept of an all-road bike that doesn’t take sides. Tom designed this bike to be the one bike you’ll ever need, whether you’re uncovering stealthy new routes that have so far stayed hidden, or your need for adventure snaps the tether that’s kept you grounded until now.

To approach the pass from the south, Ritchey’s Septimer gives you a lightweight carbon fibre frame and fork — ideal for reaching its highest point. The road, which hasn’t changed much in a couple thousand years, can be overcome with 700 x 48c tires. To get there — or almost anywhere — Ritchey’s patented Break-Away system lets you easily and quickly disassemble your bike to fit into its own sturdy travel case. Once at your destination, the bike assembles with ease, allowing you to set off on your journey without wasting a moment. External cable routing also takes away some of the hassle of prepping your bike for traveling. Multiple mounts keep your gear within easy reach to keep the adventure in motion. Compatible with 1x or 2x cranksets for pedalling toward a distant destination or climbing an ancient pass.

Tech Specs

Frame

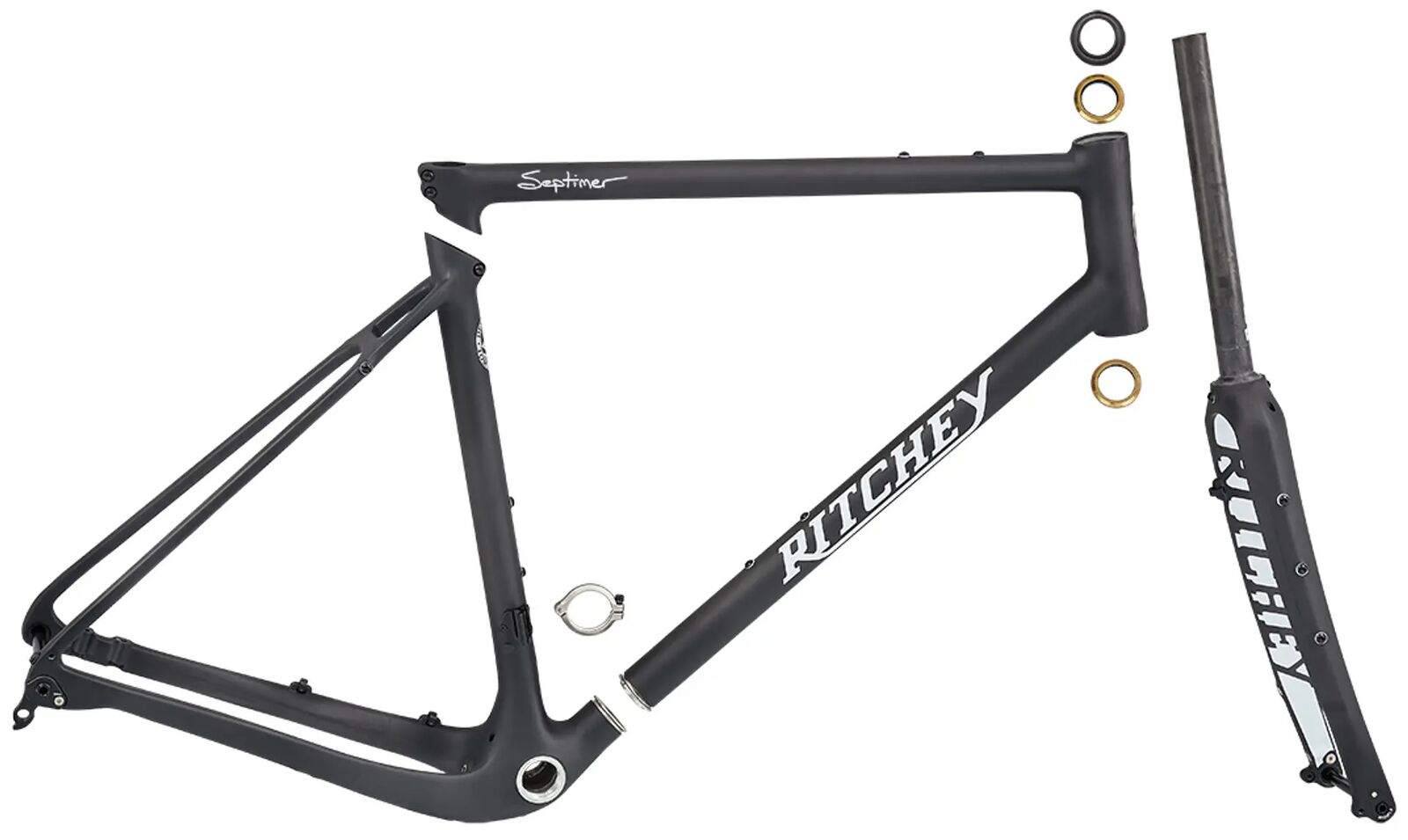

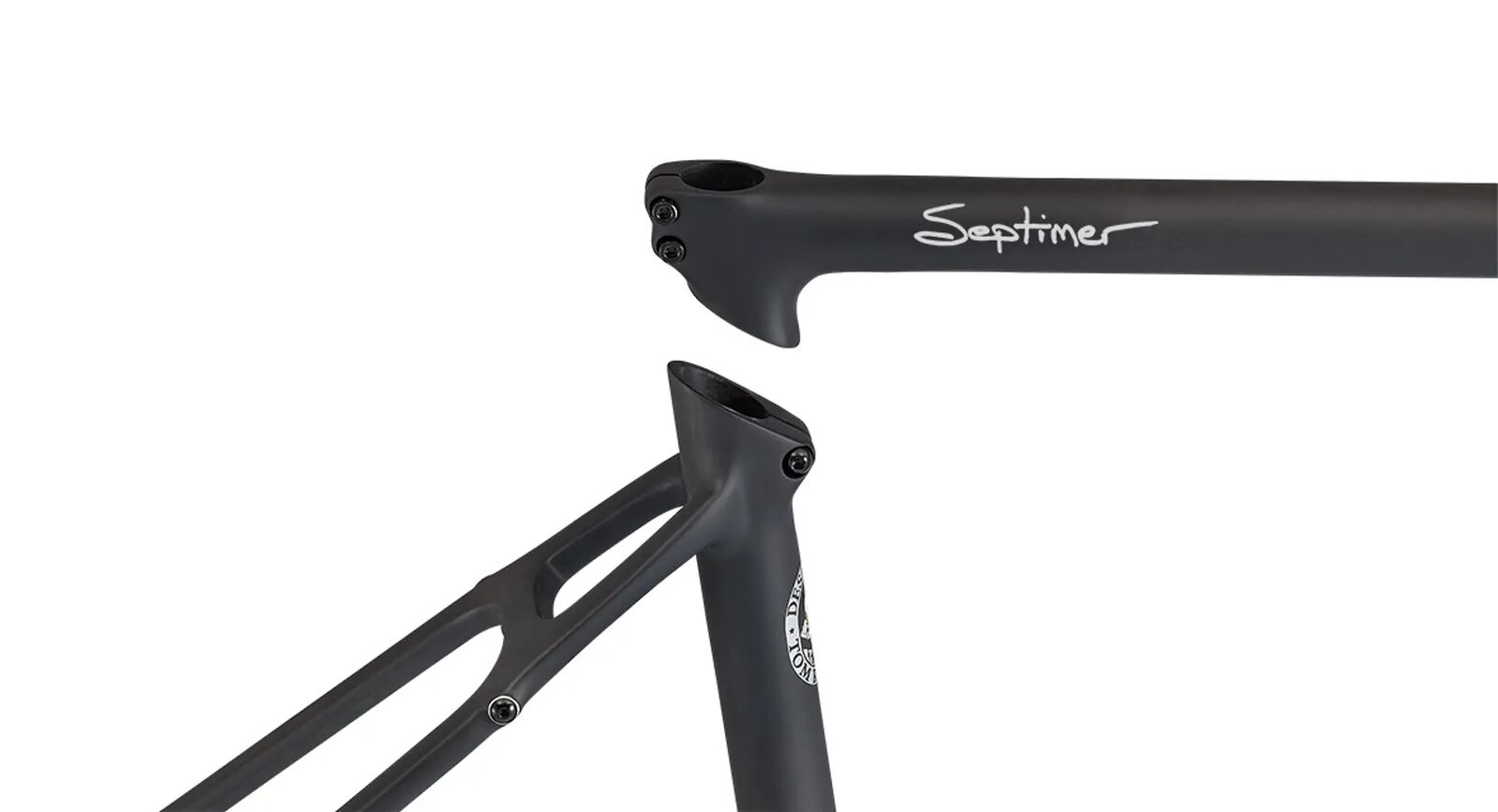

Patented Ritchey Break-Away® design
Material - carbon fibre with stainless steel joints

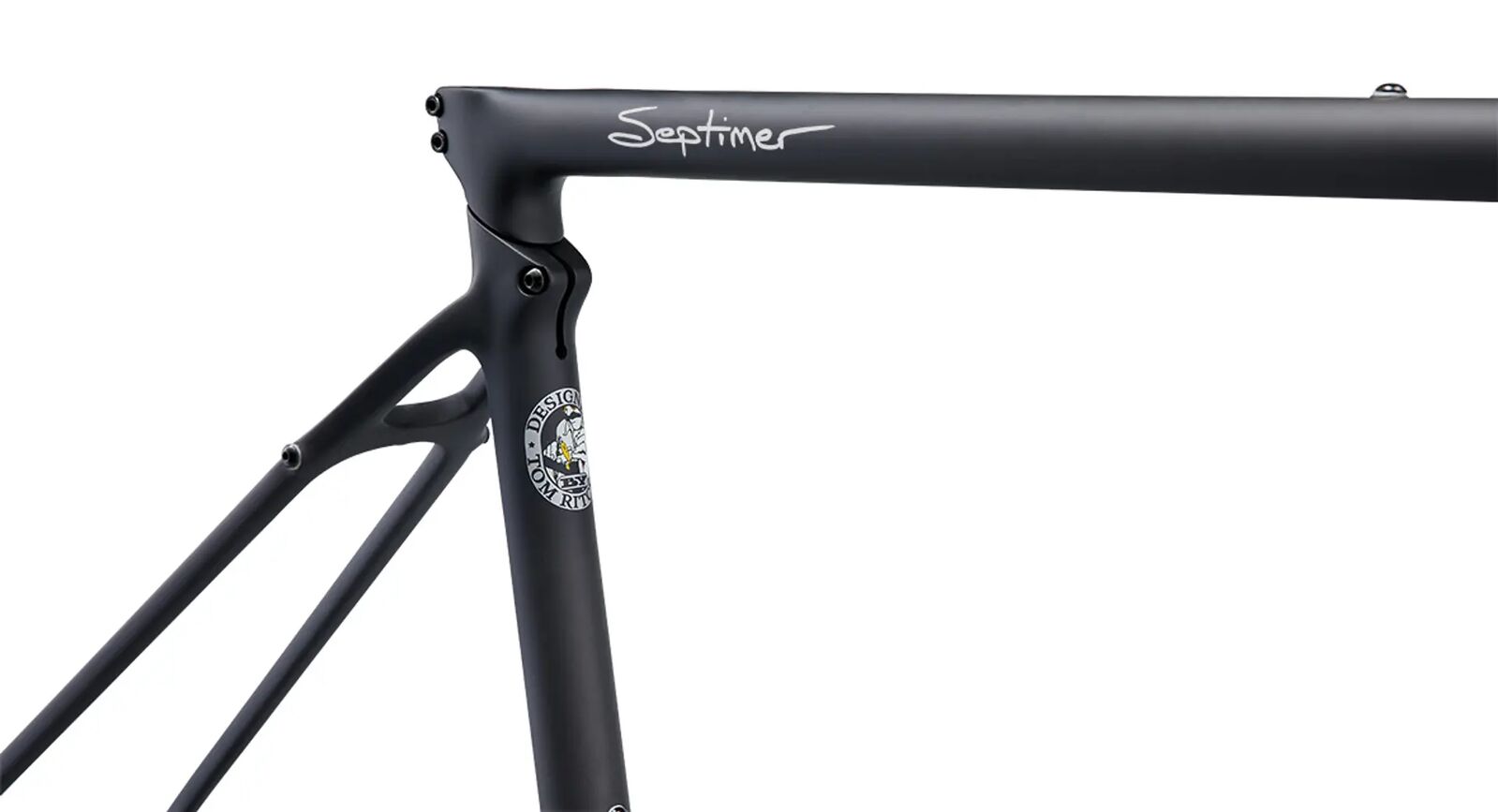

27.2mm seat tube with integrated seat collar (max torque setting: 5Nm)
Minimum seatpost insertion - 110mm

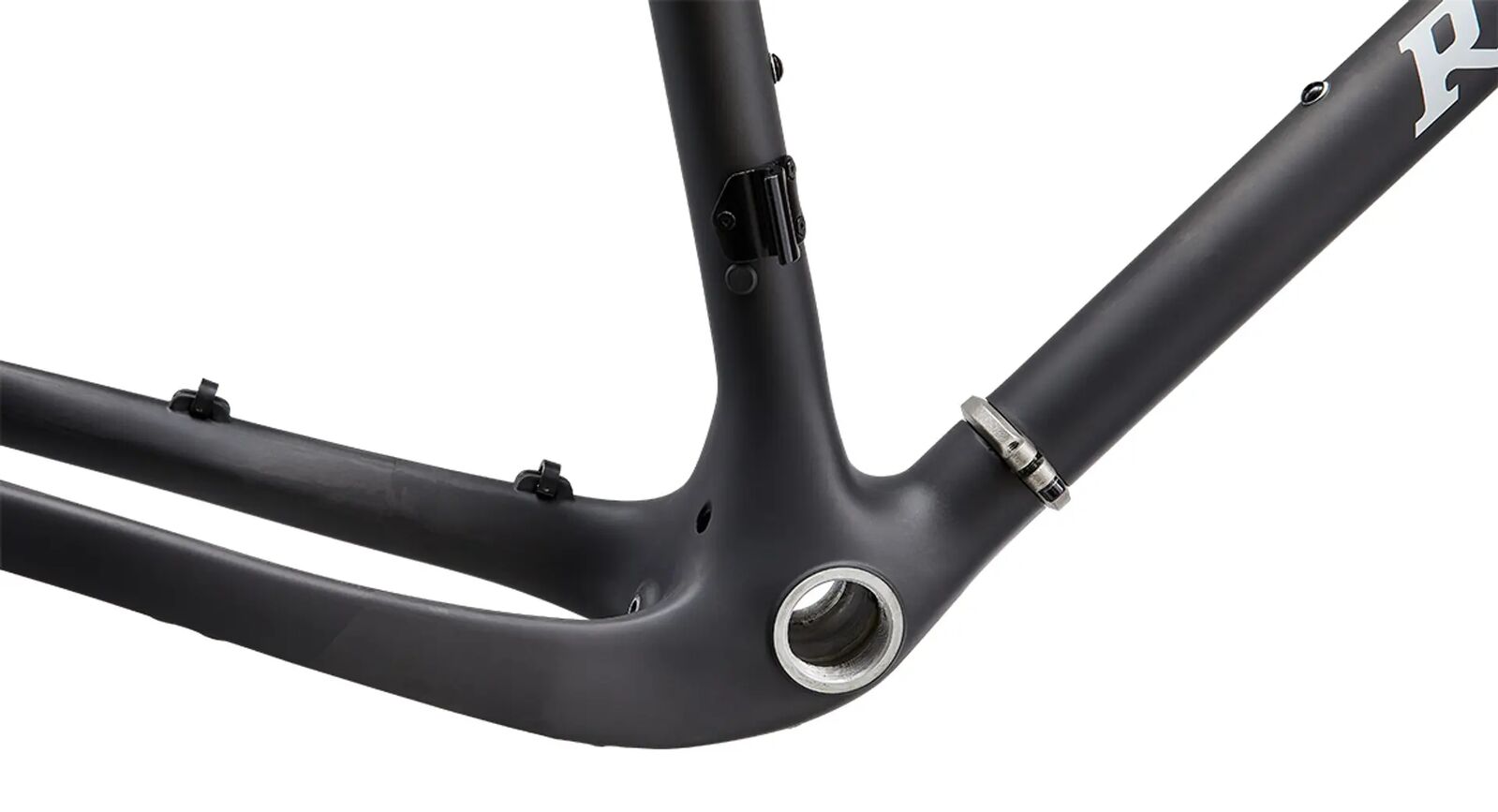

Bottom bracket - 68mm - English threaded

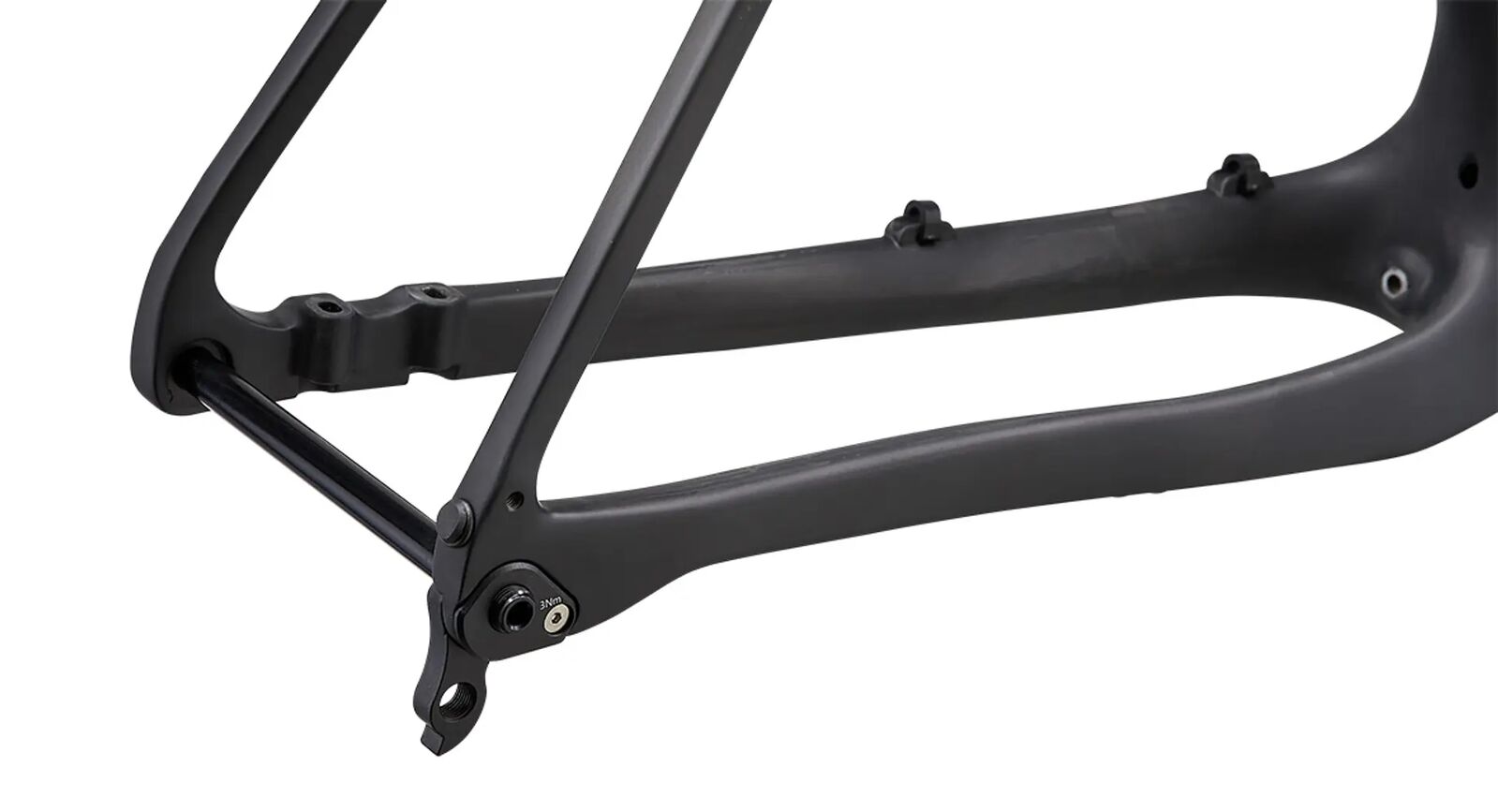

142mm spacing (12mm alloy thru-axle included)
Can accommodate 1X or 2X chainrings
Crankset min/max ring size - single 36 to 46t (chain line 49.7mm) - double 46/30t to 50/34t (chain line 47mm)
Not compatible with Direct Mount standard and related components (T-Type derailleurs and cassettes)
Bottle cage mounts - 2
Top tube bag mounts - Yes
Rack and fender mounts
External cable routing
Stealth wire routing for semi-wireless Di2 groupsets (Only compatible with Shimano Di2 EW-SD300 wire for 12-speed)
Replaceable derailleur hanger

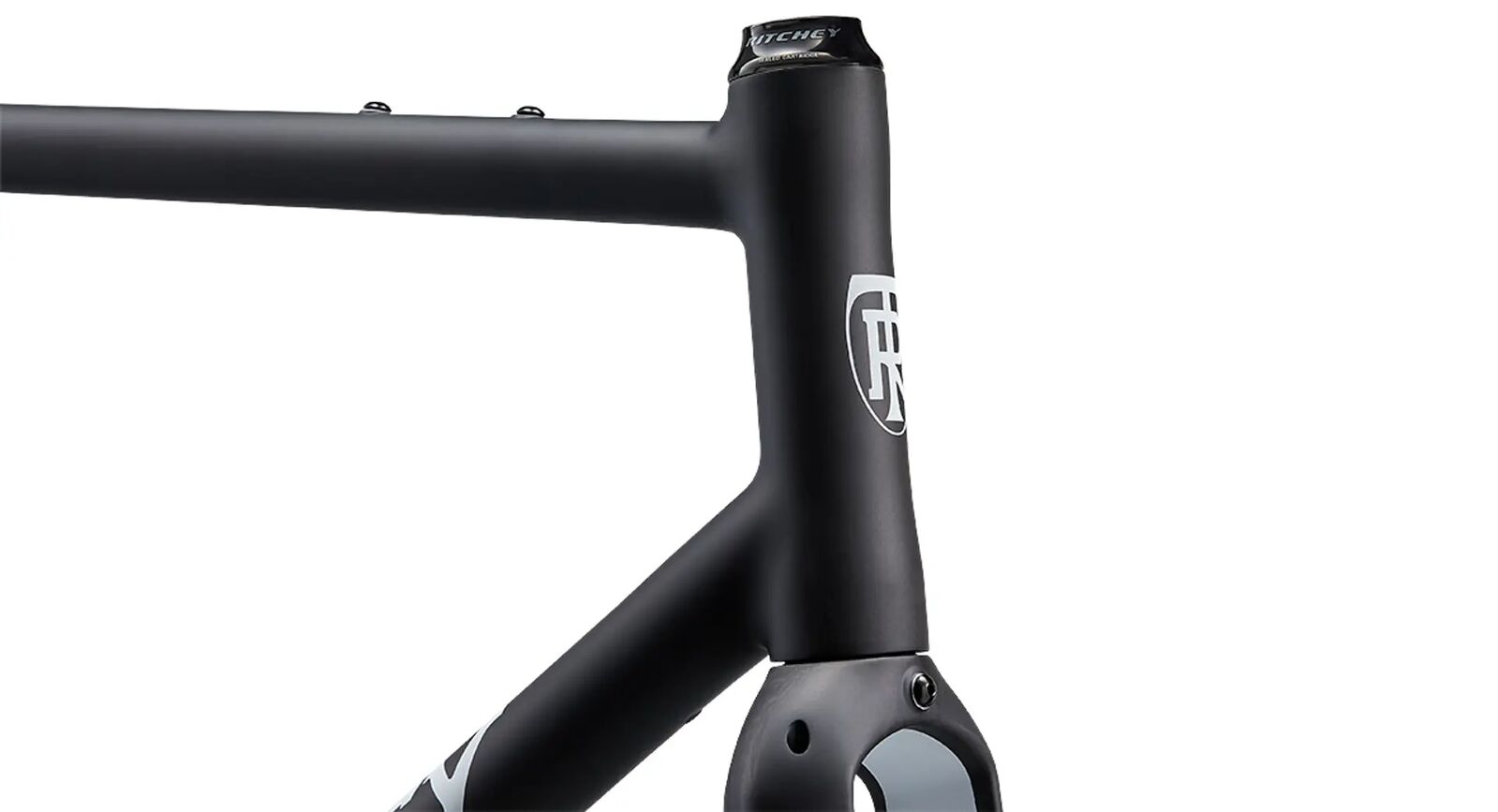

WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)

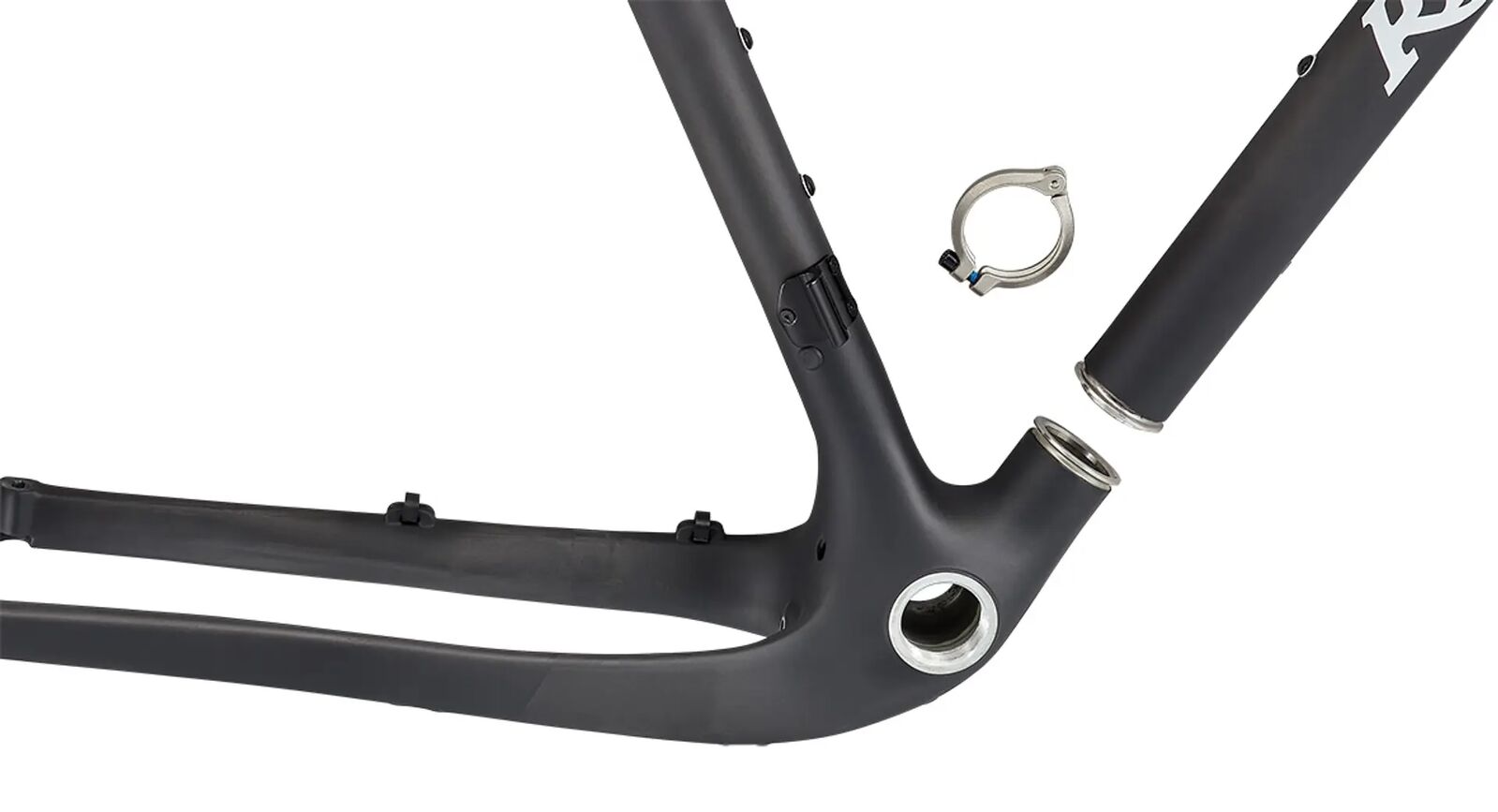

Downtube hinge clamp, included

Please Note: Stops/guides kit for mechanical groupsets available separately (IMD 15000007129 x 1pc) - Not included with the frameset.

Fork
Ritchey Carbon Adventure Fork with multi-purpose, rack and fender mounts
1-1/8" straight steerer with integrated 45-degree crown race
Steerer length - 300mm
Axle-crown - 393mm
Rake/Offset - 50mm
100mm spacing (12mm alloy thru-axle included)
30mm maximum spacers below stem
Fork max payload - 3kg per side

Tire Compatibility
Wheel and tire compatibility700 x 48c tire clearance (depending on tire/rim manufacturer)
Frame spacing60mm
Fork spacing60mm

Brake Compatibility
Flat-mount brakes front and rear140mm (160mm max - adaptors available separately)
Frame flat-mount bracket height20mm
Frame equipped for external rear hydraulic hose and full external mechanical brake outer (mechanical cable splitter cannot be used).
Hydraulic brake compatible (please see brake manufacturer recommendation for traveling with hydraulic brakes)

Details
Sizes - S / M / L / XL
Frame weight - 1,360g (size L - w/o thru-axle)
Fork weight - 440g (uncut w/o thru-axle)
Colour - Black & White
Downtube Break-Away coupler torque5Nm (Do not lubricate clamp or clamping area). Torque Key not included.

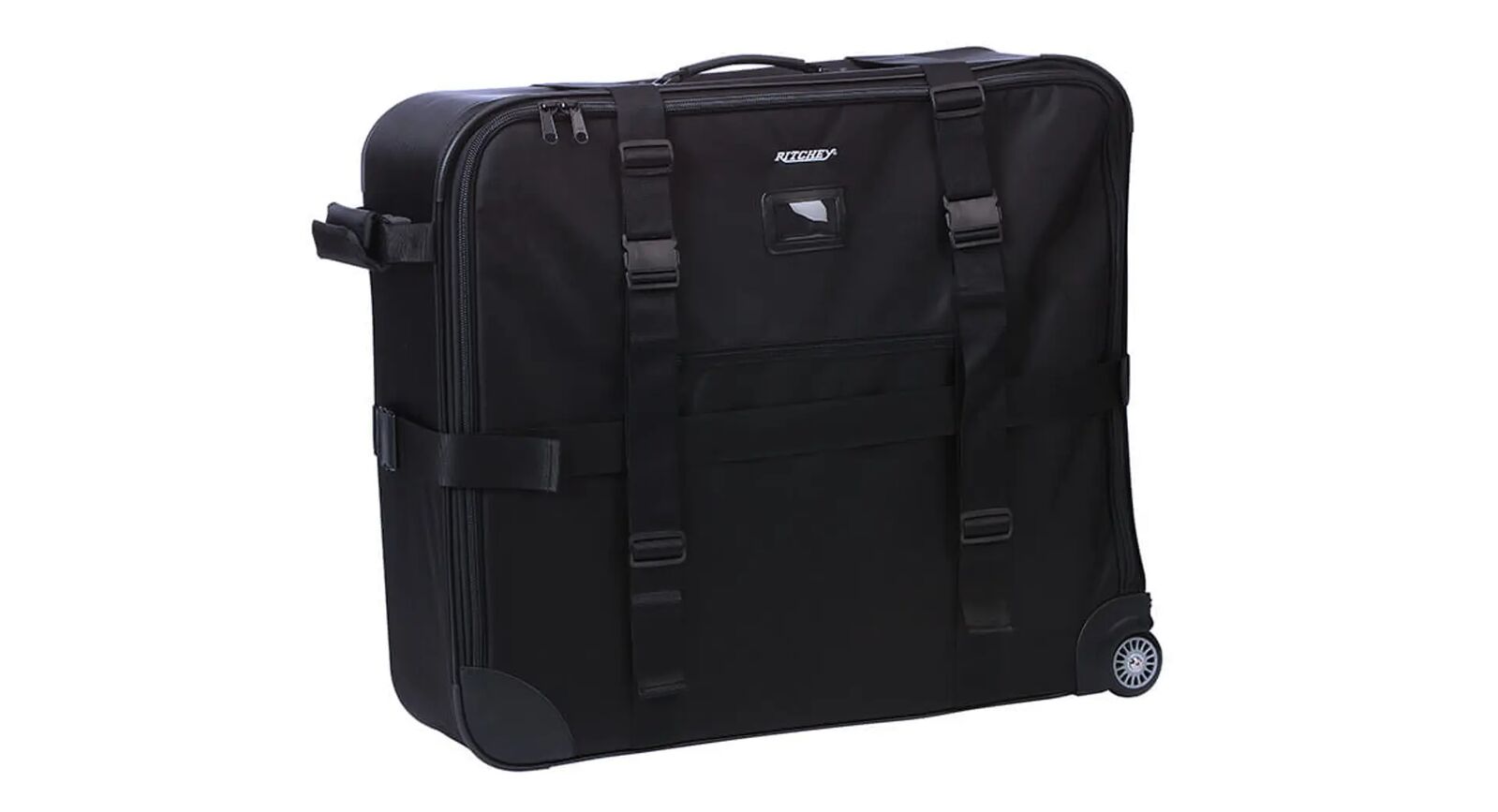

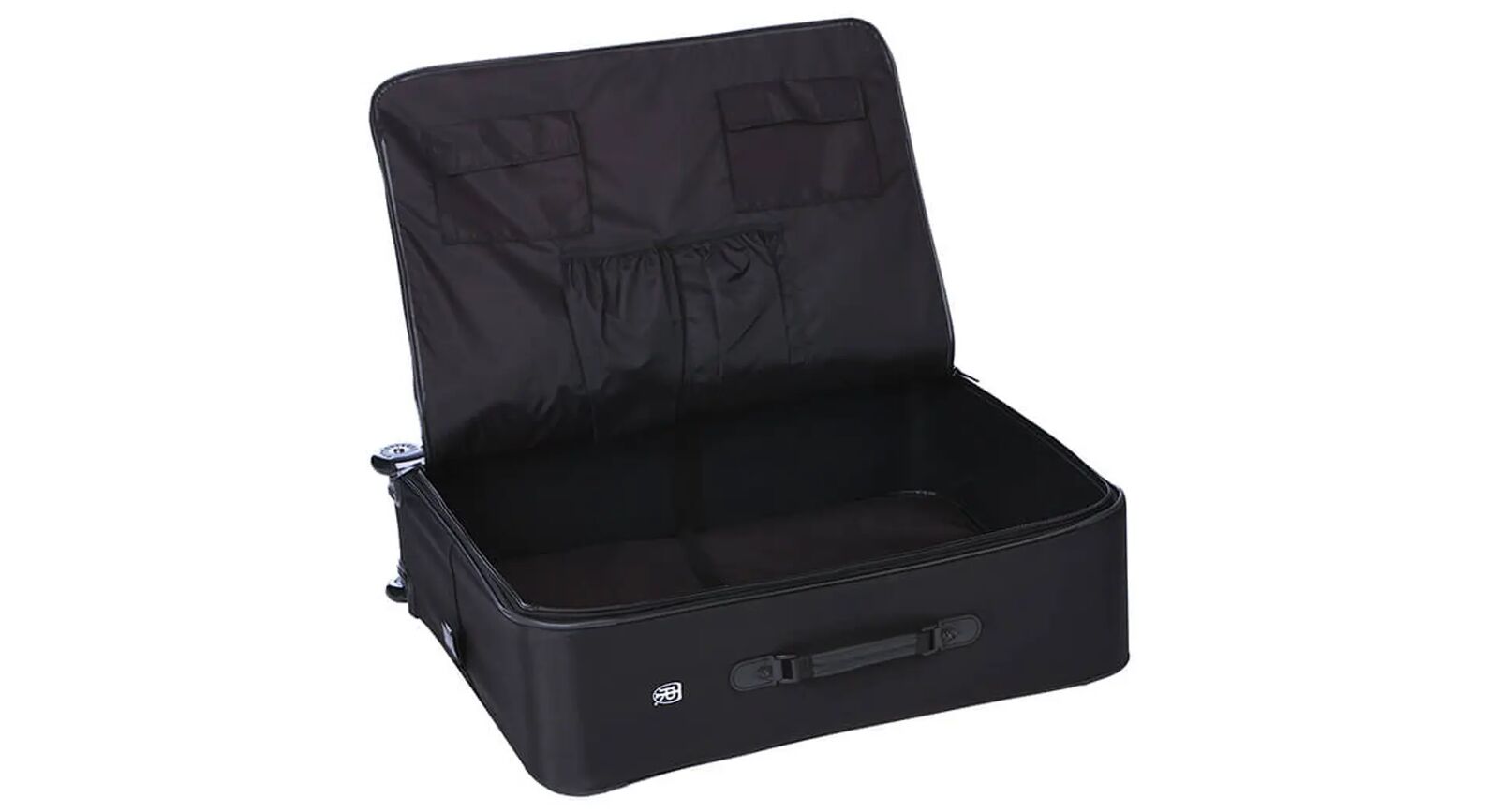

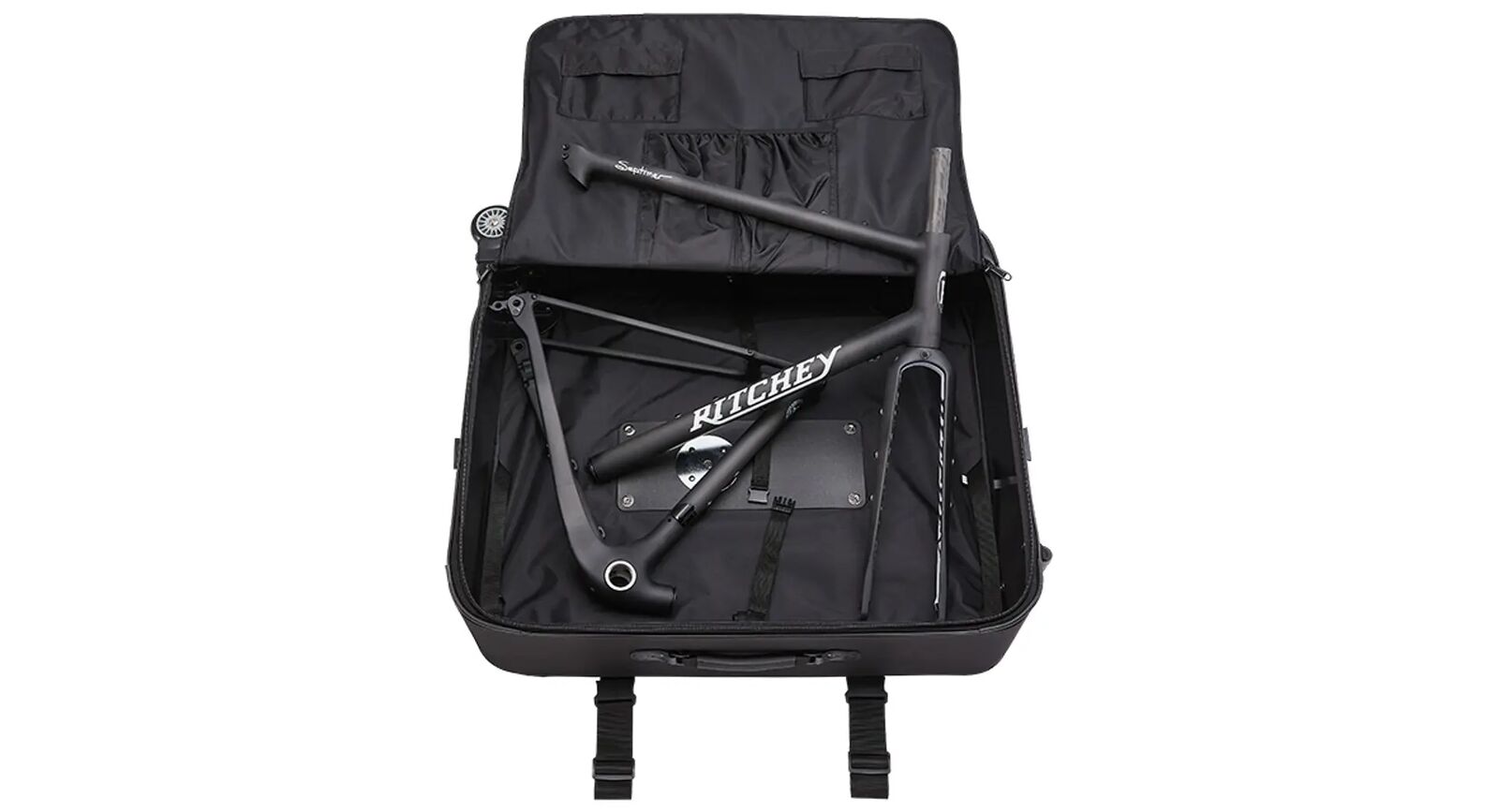

Packs into included travel case (8.5” / 21.6cm W x 26.5” / 67.3cm H x 31” / 78.8cmL w/ wheels)
