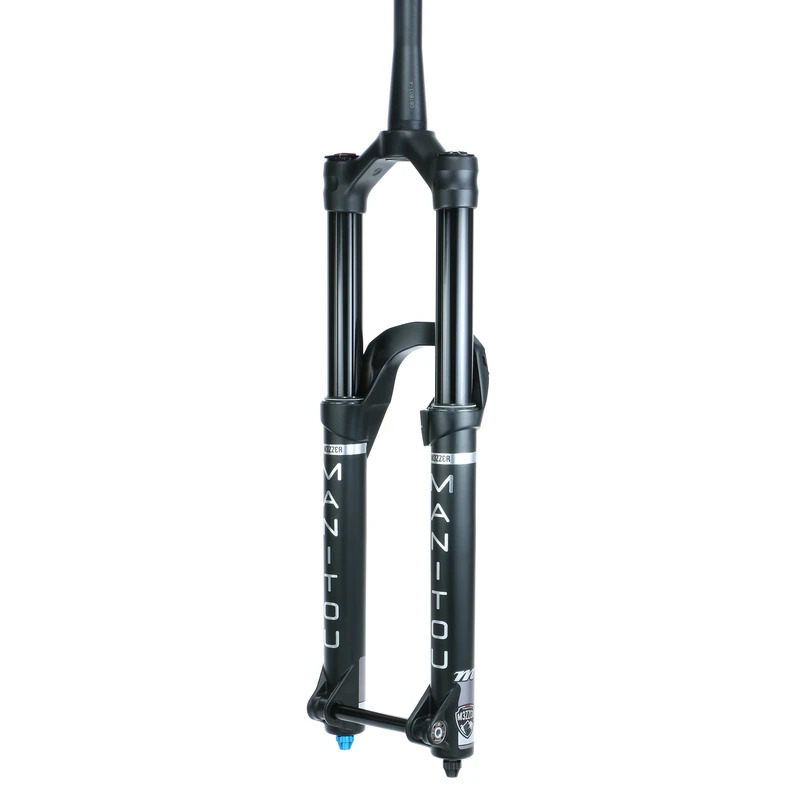

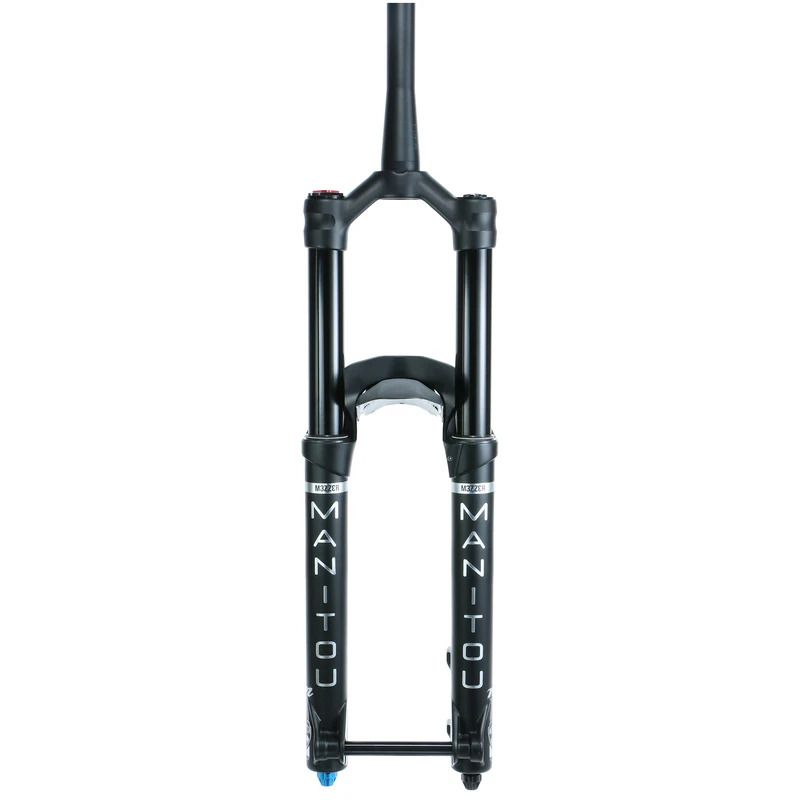

Mezzer Pro, 29in, 180mm Travel, 44mm Offset, 15x110mm BOOST (191-35561-A101)

$1,699.95 Inc. GST
Sold Out

MEZZER PRO - 29" - 180mm - tapered

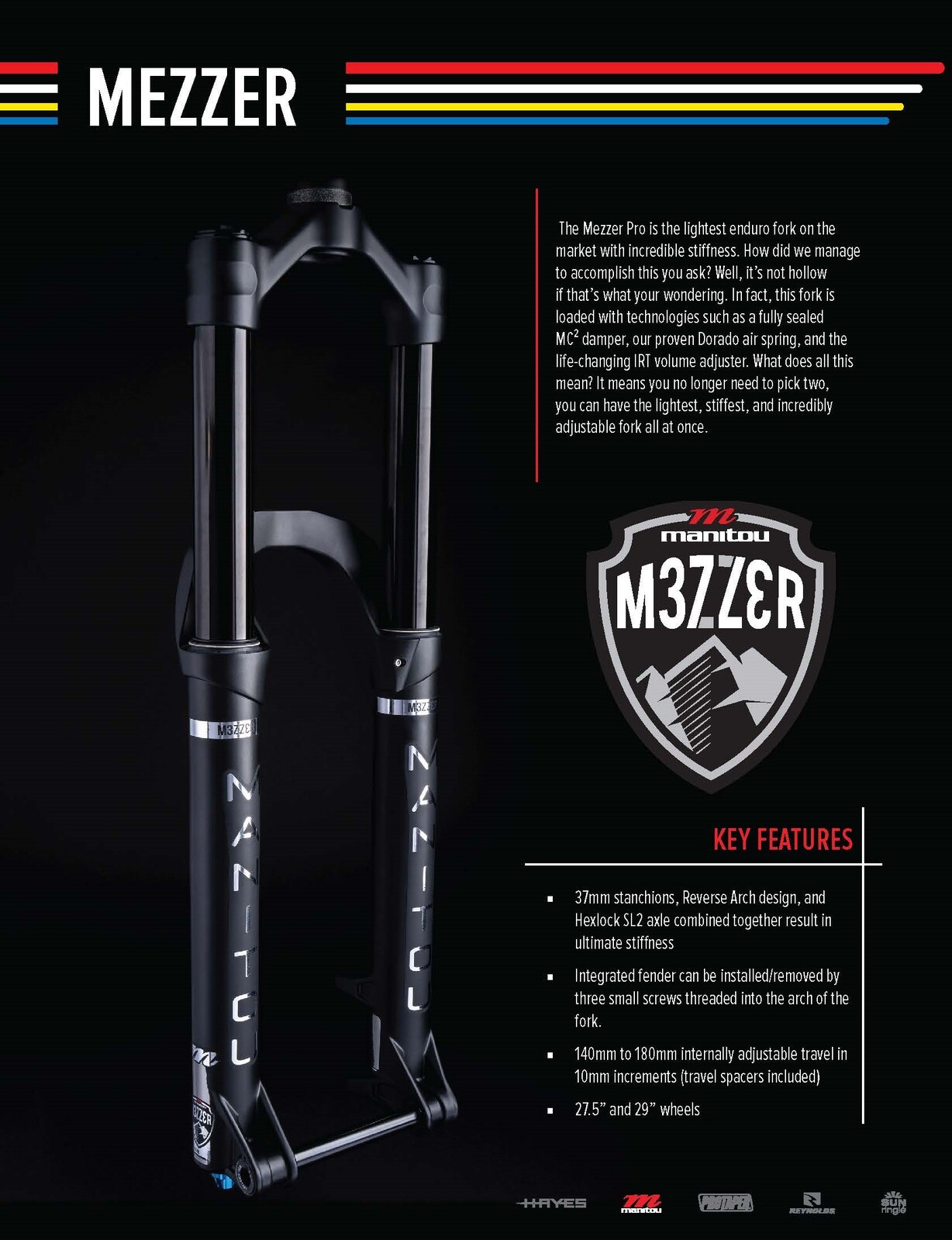

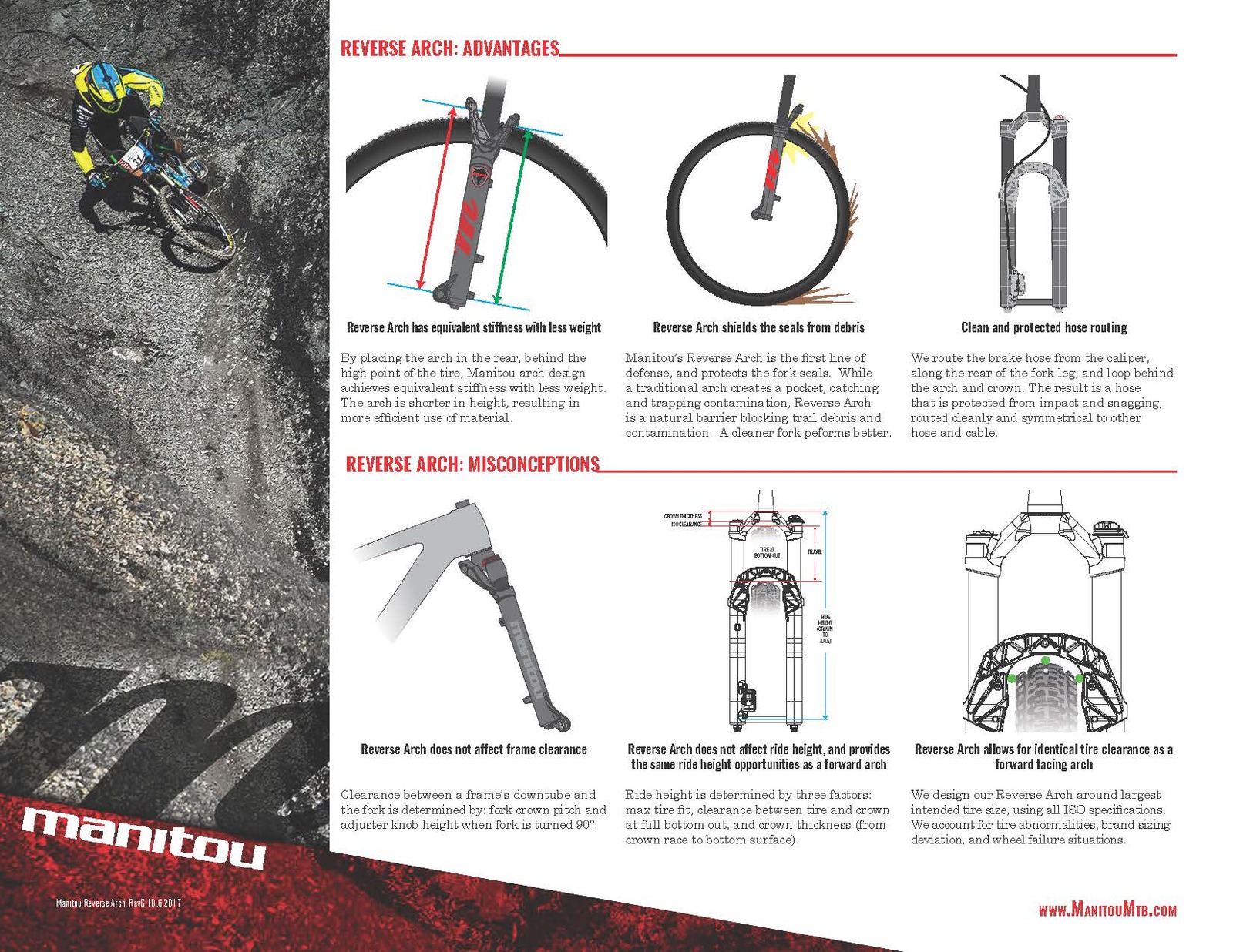

Featuring 37mm stanchions and our Reverse Arch design the Mezzer Pro is the stiffest Enduro fork on the market… it’s also the lightest. How did we manage to accomplish this you ask? Well, it’s not hollow if that’s what your wondering. In fact, this fork is loaded with technologies such as a fully sealed MC² damper, our proven Dorado air spring, and the life-changing IRT volume adjuster. What does all this mean? It means you no longer need to pick two, you can have the lightest, stiffest, and incredibly adjustable fork all at once.

  • 37mm stanchions, Reverse Arch design, and Hexlock SL2 axle combined together result in ultimate stiffness
  • Originally developed for the Dorado down-hill fork, the Dorado Air Spring offers ultimate sensitivity featuring a self-equalizing negative air spring. When inflating the fork both the positive and negative air chambers are filled simultaneously equalizing the pressures to create an incredibly supple feel
  • IRT (Infinite Rate Tune) volume adjuster allows control over the mid-stroke support and bottom-out progressivity independent from initial spring rate to independently tune small bump sensitivity and big-hit performance
  • Sealed MC² damper provides a range of blow-off thresholds to satisfy any requirement with separate high-speed and low-speed adjustments. Utilizing a bladder, our new sealed cartridge maintains damping consistency in the most severe riding conditions.
  • 140mm to 180mm internally adjustable travel in 10mm increments (travel spacers included)
  • 27.5” and 29” wheels

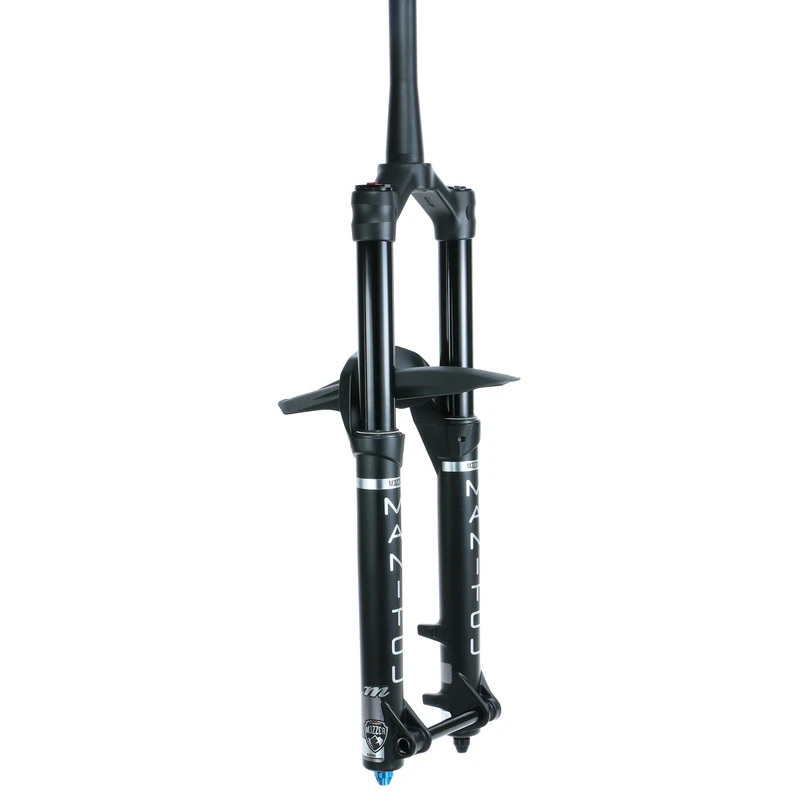

  • Integrated flexible fender can be installed/removed by three small screws threaded into the arch of the fork

Wheel Size: 29"
Weight: 2032g (29")
Offset: 44mm OS (29")
Ride Height: 554-594mm (29")
Travel: 140-180mm Internally adjustable in 10mm increments
Spring: Dorado Air w/ IRT
Compression Damping: MC2 Sealed Cartridge
Rebound Damping: Sealed Cartridge TPC
Adjustments: Air, IRT Pressure, Rebound, HS and LS Compression
Steerer: 1.5" Tapered
Crown: Forged Aluminum, Hollow Bore
Leg Diameter: 37mm
Leg Material: 7000- Series Butted Wall Aluminum
Brake Post Mount: 180mm (223mm Max)

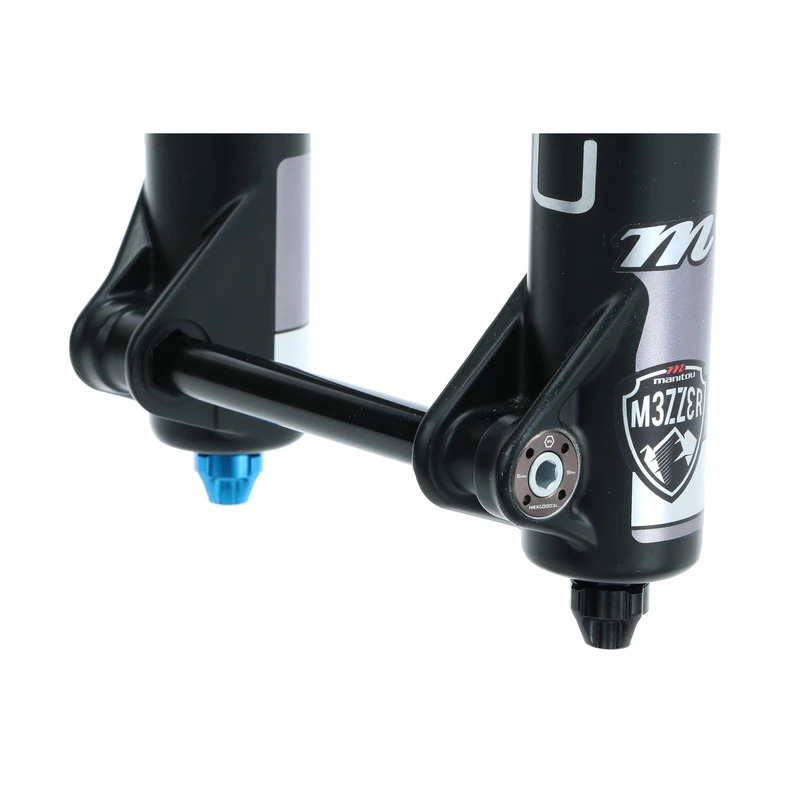

Axle: 15mm x 110mm Hexlock
Max Tire Size: 69mm w/ Fender 74mm Without
Options: Fender Kit

Dorado Air
The Manitou Dorado Air spring system contains a unique balancing valve that equalizes the positive and negative air chambers during the air fill process. This gives the spring rate a consistent feel without any flat or dead spots in the stroke, along with giving riders of different weights the same initial stroke feel.


Infinite Rate Tune (IRT) allows for advanced spring tuning by independently adjusting air pressures in the beginning and end stroke. IRT technology creates a secondary positive air spring that effects only the middle to end stroke of the fork. This allows the main air spring to be set to lower pressures for improved small bump sensitivity while maintaining mid-stroke support and moderate to aggressive end-stroke ramp-up.


The Mezzer features our fully sealed cartridge MC2 Damper technology that provides an independent HSC circuit providing an adjustable high-speed blow off point combined with a LSC circuit providing adjustment for chassis control and small bump sensitivity. This cartridge utilizes a bladder with a blow off valve to prevent rupture under high pressures and keep your damping controlled and consistent no matter the terrain.


Travel Change Made Easy
The Mezzer is internally travel adjustable from 180mm down to 140mm. This is done quite easily by adding or removing the supplied travel spacers included in every box.


“The Mezzer’s a surprise performer, offering an excellent balance between small bump sensitivity and bottom-out resistance. It’s particularly capable no matter how deep into its travel or how hard you’re pushing it. The fork’s performance really impressed me."


 “In short, this fork is not only surprisingly light and wicked stiff, it’s also at the top of the suspension tune ability chart.””


“Superiorly the Mezzer Pro works away impacts and provides a lot of confidence to the rider.”


“...Between me and a housemate borrowing the bike regularly, this fork got absolutely hammered for several month straight, but didn’t stutter once.”



SKU MAG-191-35561-A101
Barcode # 844171075913
Brand Manitou
Shipping Weight 8.0000kg
Shipping Cubic 0.032000000m3
