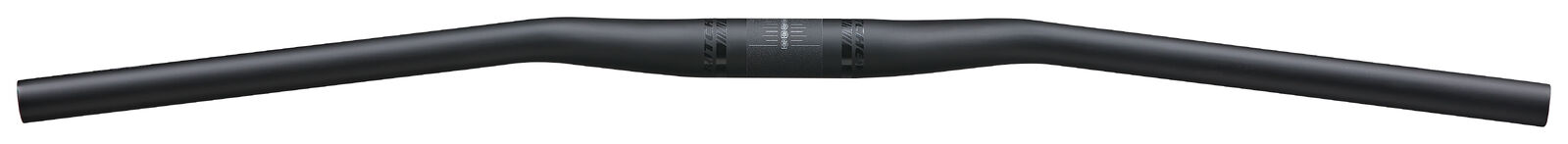

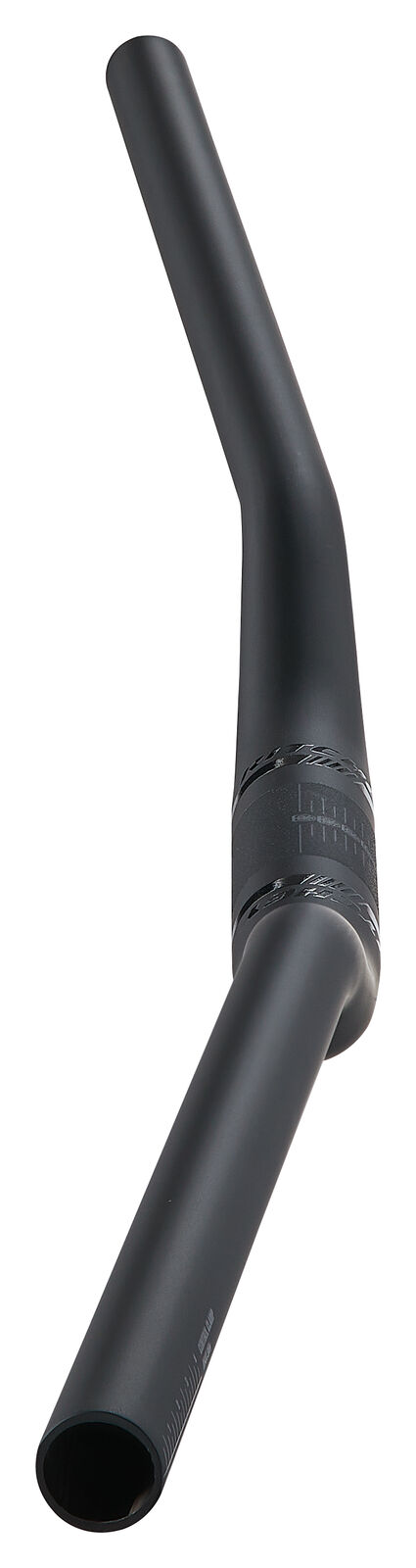

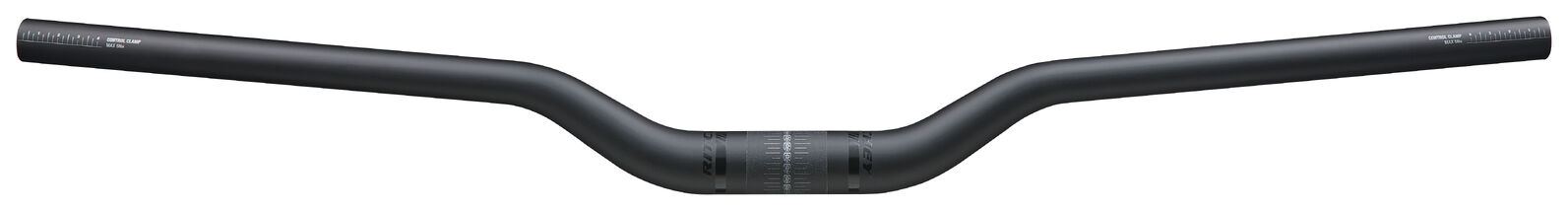

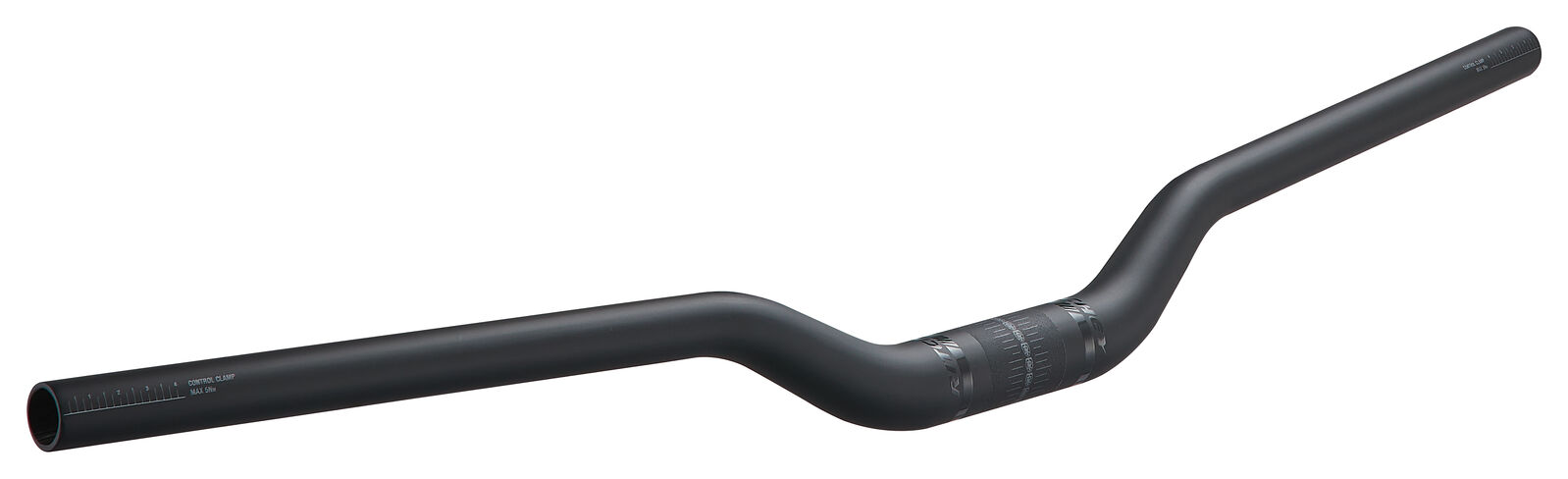

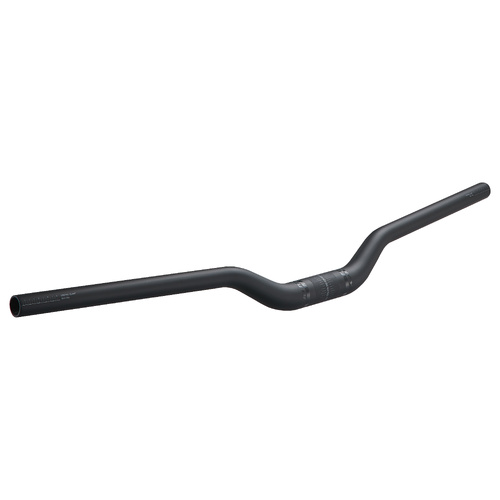

BAR SUPERLOGIC 31.8mm/760mm / 40mm Rise/5D Bend Up/8D Back Sweep (30466117012)

BAR SUPERLOGIC 31.8mm/760mm / 40mm Rise/5D Bend Up/8D Back Sweep (30466117012)

SUPERLOGIC MOUNTAIN BARS
Engineered for cross-country and all-mountain riding, Ritchey’s SuperLogic Mountain Bars offer just the right amount of rise — zero, 20mm, or 40mm — without going too wide for where you ride. The newest addition to the SuperLogic family, these carbon bars are among the lightest on the market.

At 760mm wide with cutting marks for easy customization, they feature a 8° backsweep for 40mm rise, plus a 5° upsweep for natural wrist alignment. The 31.8mm clamp diameter ensures compatibility with modern stems, while the range of rise plus a narrower width put the SuperLogic Mountain Bars in a class all their own. Weighing in at 175g for the40mm rise, few other bars can compete with its weight/price.

Whether you’re diving into tight switchbacks or sending it on technical terrain, the SuperLogic Mountain Bars are your go-to for lightweight strength, comfort, and confident control.

SPECIFICATIONS
• Material: lightweight carbon fibre
• Width: 760mm (with cutting marks)
• Rise: zero / 20mm / 40mm
• Backsweep: 8° for 40mm rise
• Upsweep: 5° • Clamp diameter: 31.8mm
• Bar-end compatible: yes, 5Nm (max)
• Lever/shifter torque: 5Nm (recommended)
• Stem clamp torque: 5Nm (max)
• Weight:  40mm rise: 175g;  (all weights +/- 5g)
• Colour: matte UD carbon finish
