J-Bend PSB34 ALPEN 1 - 13G/14G 2.34/2.0 BLACK

Description
Specifications

J-Bend PSB34 13G/14G (2.34/2.0) BLACK

Pillar PSB34 "Alpen 1" - a beefy spoke specifically for heavier duty requirements!

This single butted and cold forged spoke is designed for heavy duty applications such as enduro, DH, touring & eBikes.

The great thing about the ALPEN 1 is that being a regular 14g (2.0) thread from after the bend down to the thread, you can cut them to almost any size you require!

By strengthening the spoke's arc at the hub flange, this critical area is reinforced with more material and prevents spoke breaks.

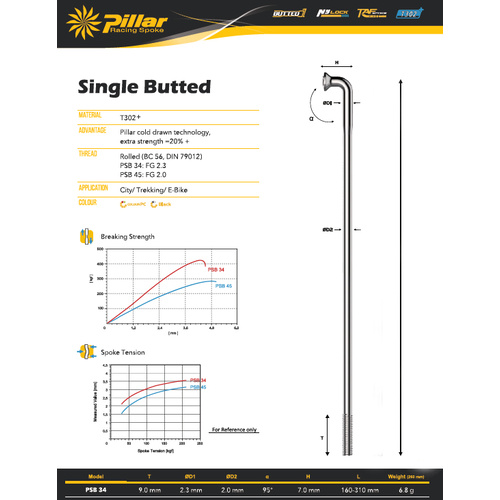

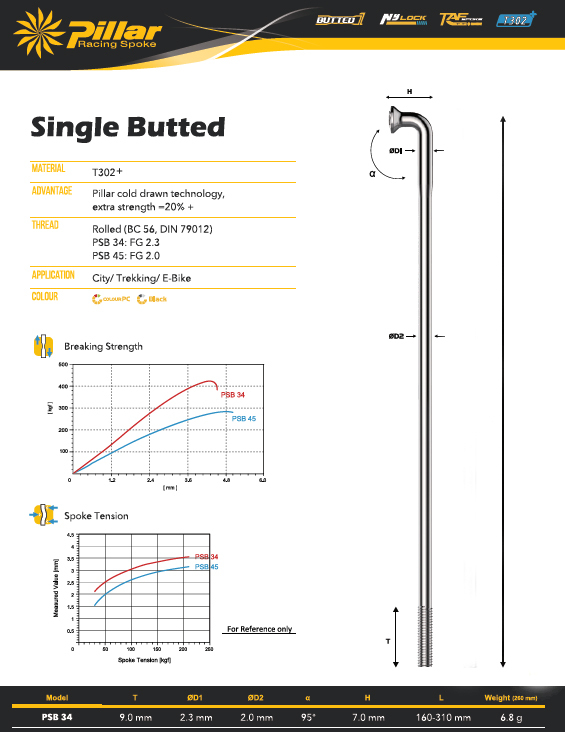

Dimensions: 2.34/2.0mm (refers to the diameter of spoke arc/main body of spoke)
Thread: rolled (according to DIN 79012)
arc angle of the spoke head: 95°
Thread length: 9.0 mm
Material: SandvikT302 stainless steel

NOTE
Spokes will be supplied without nipples! If necessary, please order 14g (2.0mm) nipples separately

NOTE:
If the length you're chasing is currently showing as out of stock, we can custom cut them for you. Shoot us an email on sales@dirtworks.com.au or give us a call on 02-9679-8400

PLEASE NOTE:
It is important to make sure when ordering spokes that you make your choices carefully. Use a reputable spoke calculation program (or three) to work out the lengths, if you are unsure how to do this, then speak to a professional wheelbuilder before placing your order. If you are unsure which spokes are most suitable for your needs, contact us or speak to a professional wheelbuilder.

We can not refund or exchange spokes once they have been picked, packed and invoiced.

Models Available:
PRG-SJPSB34K170Q18
PRG-SJPSB34K172Q18
PRG-SJPSB34K174Q18
PRG-SJPSB34K176Q18
PRG-SJPSB34K178Q18
PRG-SJPSB34K180Q18
PRG-SJPSB34K182Q18
PRG-SJPSB34K184Q18
PRG-SJPSB34K186Q18
PRG-SJPSB34K188Q18
PRG-SJPSB34K190Q18
PRG-SJPSB34K192Q18
PRG-SJPSB34K194Q18
PRG-SJPSB34K196Q18
PRG-SJPSB34K198Q18
PRG-SJPSB34K200Q18
PRG-SJPSB34K202Q18
PRG-SJPSB34K204Q18
PRG-SJPSB34K206Q18
PRG-SJPSB34K208Q18
PRG-SJPSB34K210Q18
PRG-SJPSB34K212Q18
PRG-SJPSB34K214Q18
PRG-SJPSB34K216Q18
PRG-SJPSB34K218Q18
PRG-SJPSB34K220Q18
PRG-SJPSB34K222Q18
PRG-SJPSB34K224Q18
PRG-SJPSB34K226Q18
PRG-SJPSB34K228Q18
PRG-SJPSB34K230Q18
PRG-SJPSB34K232Q18
PRG-SJPSB34K234Q18
PRG-SJPSB34K236Q18
PRG-SJPSB34K238Q18
PRG-SJPSB34K240Q18
PRG-SJPSB34K242Q18
PRG-SJPSB34K244Q18
PRG-SJPSB34K246Q18
PRG-SJPSB34K248Q18
PRG-SJPSB34K250Q18
PRG-SJPSB34K252Q18
PRG-SJPSB34K254Q18
PRG-SJPSB34K256Q18
PRG-SJPSB34K258Q18
PRG-SJPSB34K260Q18
PRG-SJPSB34K262Q18
PRG-SJPSB34K264Q18
PRG-SJPSB34K266Q18
PRG-SJPSB34K268Q18
PRG-SJPSB34K270Q18
PRG-SJPSB34K272Q18
PRG-SJPSB34K274Q18
PRG-SJPSB34K276Q18
PRG-SJPSB34K278Q18
PRG-SJPSB34K280Q18
PRG-SJPSB34K282Q18
PRG-SJPSB34K284Q18
PRG-SJPSB34K286Q18
PRG-SJPSB34K288Q18
PRG-SJPSB34K290Q18
PRG-SJPSB34K292Q18
PRG-SJPSB34K294Q18
PRG-SJPSB34K296Q18
PRG-SJPSB34K298Q18
PRG-SJPSB34K300Q18
PRG-SJPSB34K302Q18
PRG-SJPSB34K304Q18
PRG-SJPSB34K306Q18
PRG-SJPSB34K308Q18
PRG-SJPSB34K310Q18
