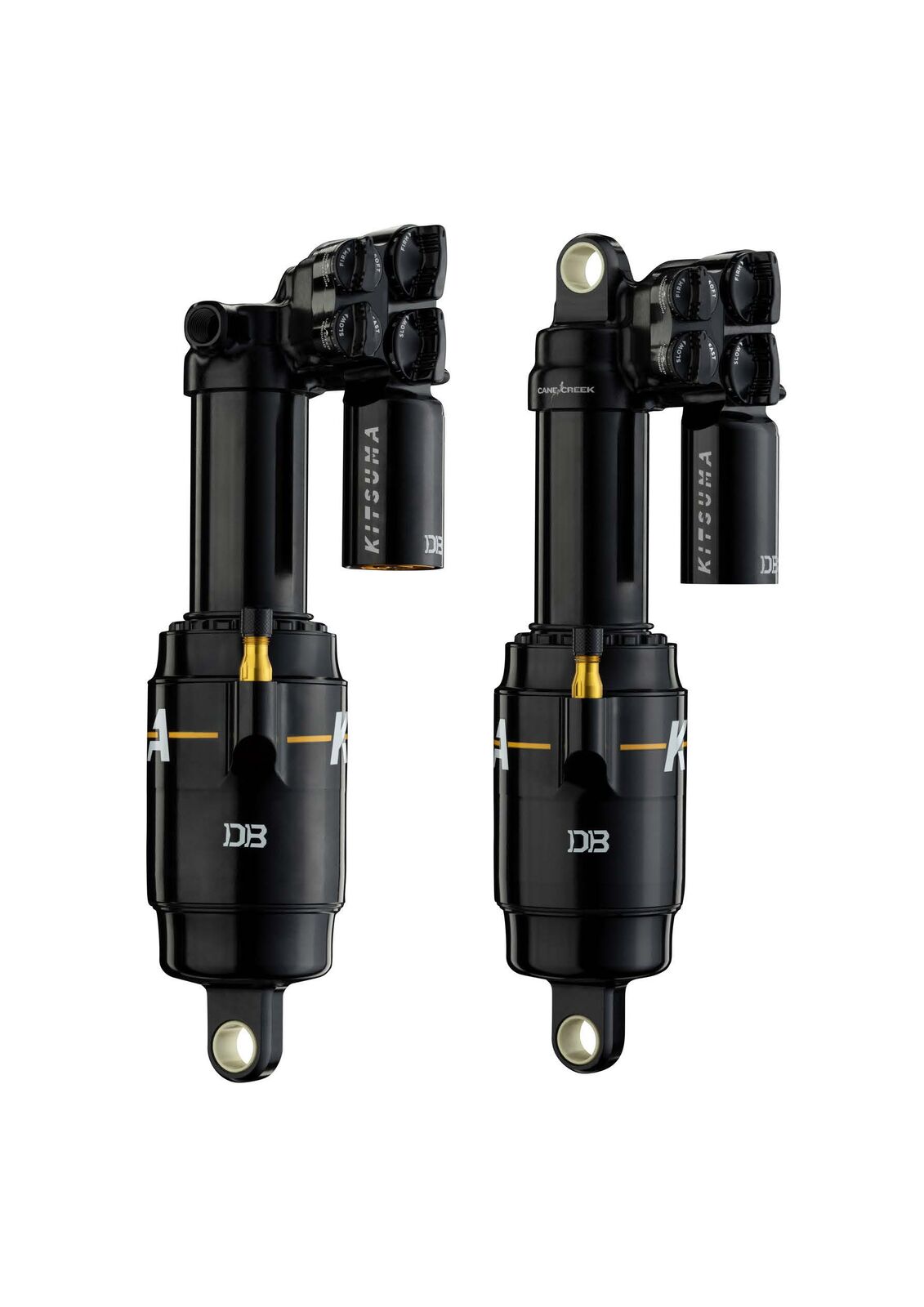

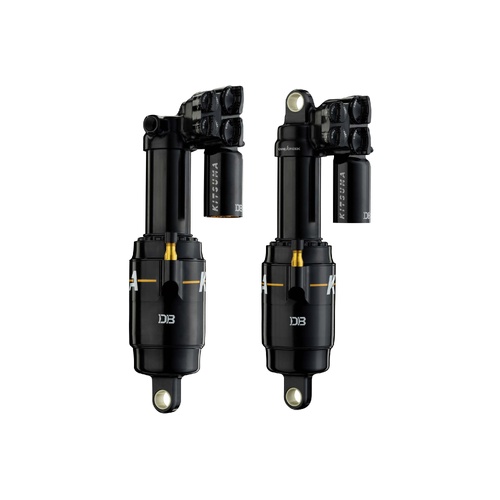

KITSUMA - AIR - TRUNNION - 185/50 - G2 (BCD2014)

Kitsuma is built to descend.

It hugs the ground on the roughest and steepest trails, giving you maximum grip, a planted feel, and allows you to go faster thanks to a more personalized tune. It’s the only 4-way adjustable shock that’s tunable by hand - making it easier to move through the setup process quickly and get back to ripping down the trail.

Second Generation Updates
• Single-turn dials on all adjustments with laser-etched position marks for easier, more intuitive tuning.
• Easy-turn dials feature machined grooves for precise feel
• Higher Max HSR damping : Greater control on big hits, hard compressions, take offs & landings
• Lower Min HSC damping : More plush on abrupt impacts and chunky trails
• Updated valve seats and damper tube material for greater reliability
• Updated, modern graphics match rest of current Cane Creek shock line

SPECIFICATIONS:
WEIGHT:+/- 585g (Air) +/- 417g (Coil w/o spring) *varies by size
DAMPING:Twin-tube, independent high & low speed compression and rebound circuits. Motorex 4wt damper oil. Largest oil volume of Cane Creek shock line.
ADJUSTMENTS:High speed compression, low speed compression, high speed rebound, low speed rebound - Air shocks use easy, tool-free volume reduction to increase progression
CLIMB SWITCH:3 position CS lever : Open, Climb, LOCKED
SHAFT DIAMETER:9.5mm, solid steel
MANUFACTURING:Hand-built & individually dyno tested in Fletcher, NC, USA
WARRANTY:2 years
