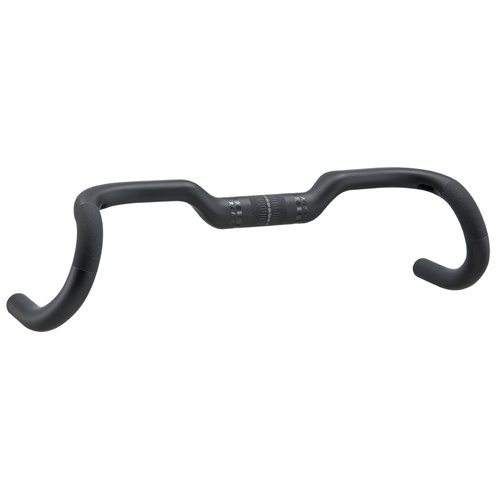

BAR SuperLogic ERGOMAX 31.8mm/40cm/102mm Drop/76mm Reach/ w/ Internal Routing [Bar Width: 40cm]

Tom Ritchey’s original ErgoMax handlebar easily notched a following for its comfort and adaptability, and its go-anywhere ‘tude. The SuperLogic ErgoMax joins the all-carbon category, where Tom has given the bar a few key upgrades without taking anything away from its mixed surface soul.

Constructed from carbon fiber, the SuperLogic ErgoMax features a compact bend shape and ergonomic top section for reduced fatigue and improved hand support during those endurance days (and nights) both on and off-road. A 20mm rise at the clamping area puts you in a more upright riding position, while a generous 17.5° drop flare promotes a stable, confident riding position no matter what’s underneath your wheels. Available in 38, 40, 42, and 44cm widths, the 90mm center section allows for clip-ons or attaching gear bags. The handlebar supports full or partial internal cable routing and is compatible with the Shimano EW-RS910 junction box.

The SuperLogic ErgoMax Handlebar is engineered for control, comfort, and versatility across mixed terrain, but more than that, it’s for riders who take off in pursuit of whatever is “out there,” because it’s infinitely more interesting than what’s here.

Tech Specs
Material - carbon fiber
Bend shape - compact
Top section - ergonomic
Width - 38, 40, 42, 44cm
Drop - 113mm
Reach - 70mm
Drop flare - 17.5°
Flare out - 2°
Backsweep - 5°
Rise - 20mm
Clamp diameter - 31.8mm
Accessory mount diameter - 31.8mm
Cable routing - full or partial internal (wider cable housing may interfere with routing) - compatible with Shimano EW-RS910 junction box
Clip-on compatibility - Yes
Lever/shifter torque - 5Nm (recommended)
Stem clamp torque - 5Nm (max)
Weight - 235g (42cm)
Colour - matte UD carbon
Not compatible with Ritchey C260 stem
